Installation Procedure

IMPORTANT: The shift lever seal must be installed to the narrow end of the shift lever.
  1. Install the shift lever seal (2) onto the shift lever assembly (4).

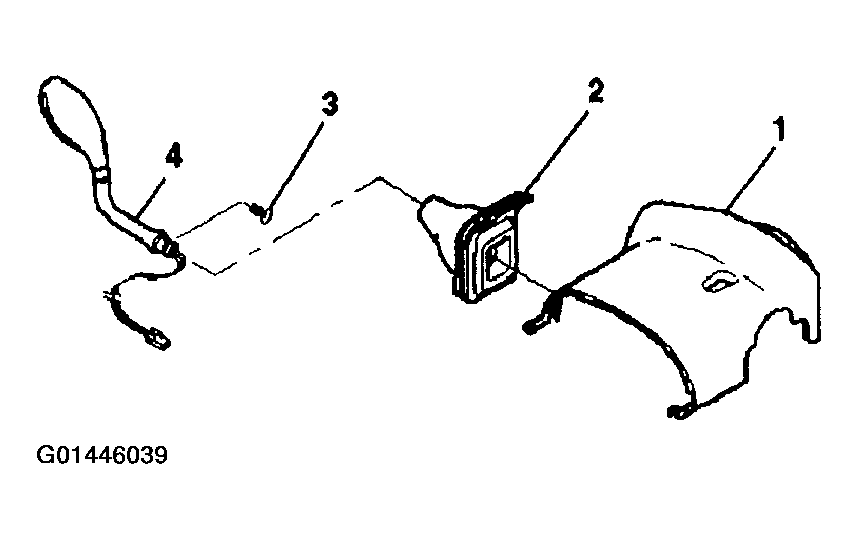

    Fig 1: Installing Shift Lever
    G01446039Courtesy of GENERAL MOTORS CORP.
  2. Install the shift lever assembly (4).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the shift lever screw (3) into the shift lever assembly (4).

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

  4. Slide the shift lever seal (2) down the shift lever assembly (4).
  5. Align the shift lever seal into the steering column trim covers.
  6. If necessary, install the steering column trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT  .
  7. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
