Installation Procedure

NOTE: Refer to FASTENER NOTICE .

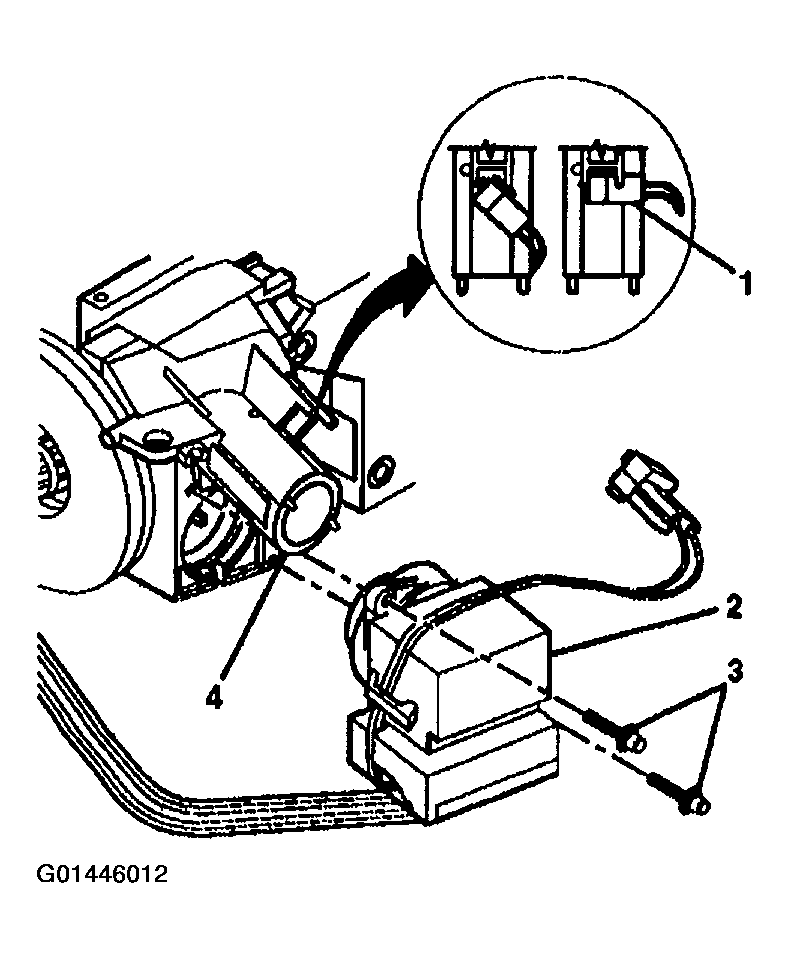

Install the ignition switch assembly (2) and secure by using 2 tapping screws (3).
Tighten

Tighten the screws to 7 N.m (62 lb in).
Install the ignition switch assembly connector (1) onto the ignition lock cylinder case (4).

Fig 1: Installing Ignition Switch Assembly
Courtesy of GENERAL MOTORS CORP.

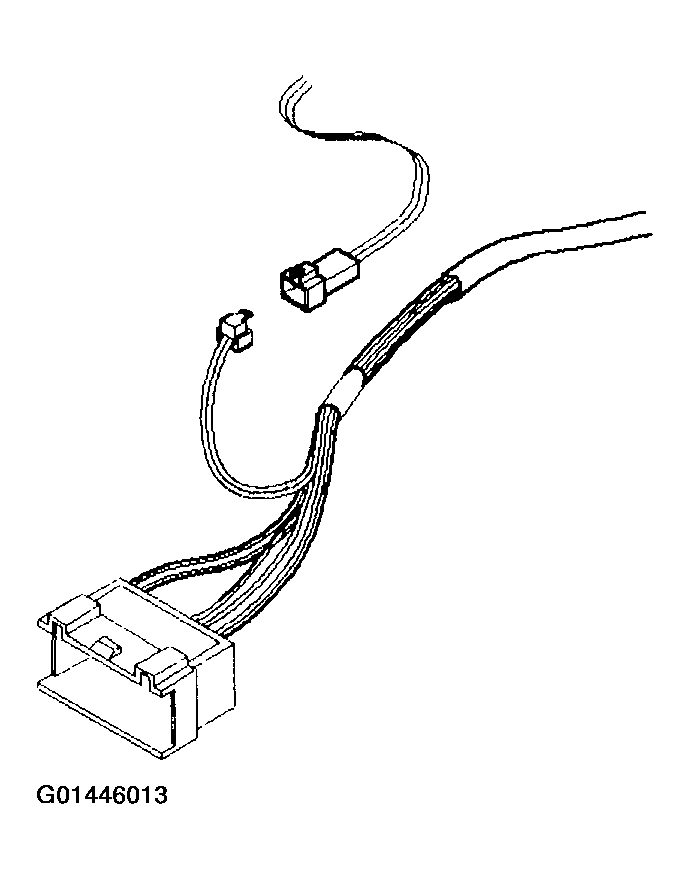

Connect the theft deterrent control module connector.
Connect the fused jumper assembly connector.

Fig 2: Connecting Theft Deterrent Control Module Connector
Courtesy of GENERAL MOTORS CORP.

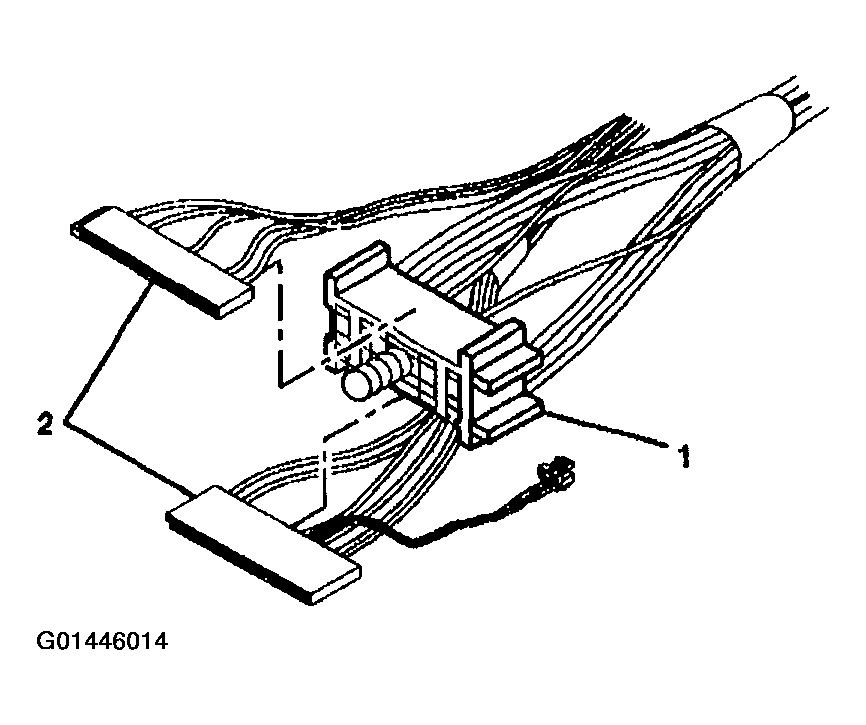

Slide the 2 connectors (2) of the turn signal and multifunction switch assembly onto the bulk head connector (1).

Fig 3: Connecting Switch Assembly Onto Bulk Head Connector
Courtesy of GENERAL MOTORS CORP.

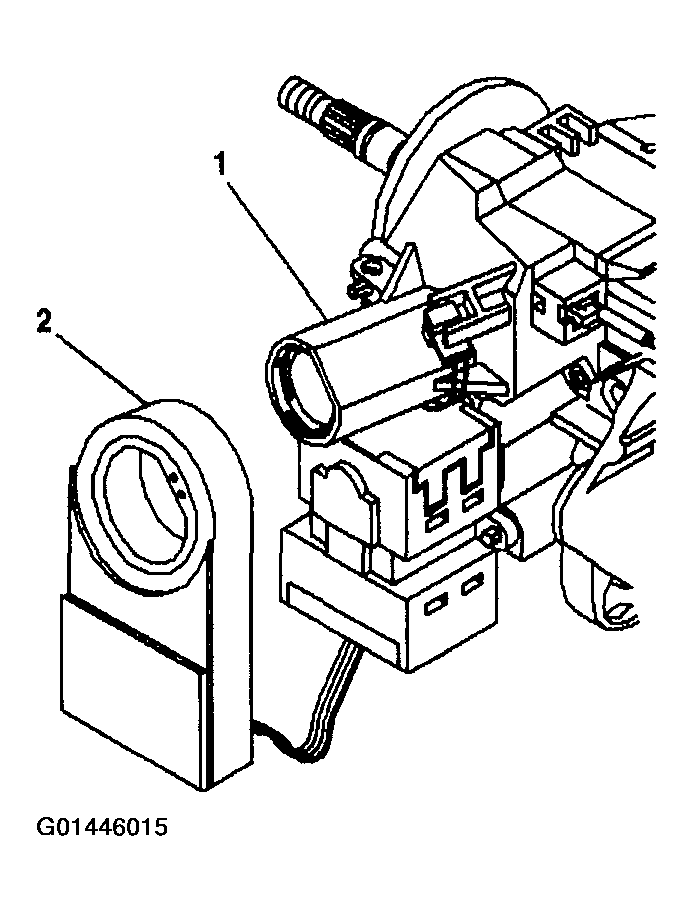

Install the theft deterrent control module (2) onto the ignition lock cylinder case (1).

Fig 4: Installing Theft Deterrent Control Module
Courtesy of GENERAL MOTORS CORP.
Install the upper and lower trim covers. Refer to STEERING COLUMN TRIM COVERS REPLACEMENT .
Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .
