Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Install a drain pan under the vehicle.
  3. Remove the power steering gear heat shield. Refer to POWER STEERING GEAR HEAT SHIELD REPLACEMENT  .
  4. Remove the power steering return hose (4) from the power steering gear.

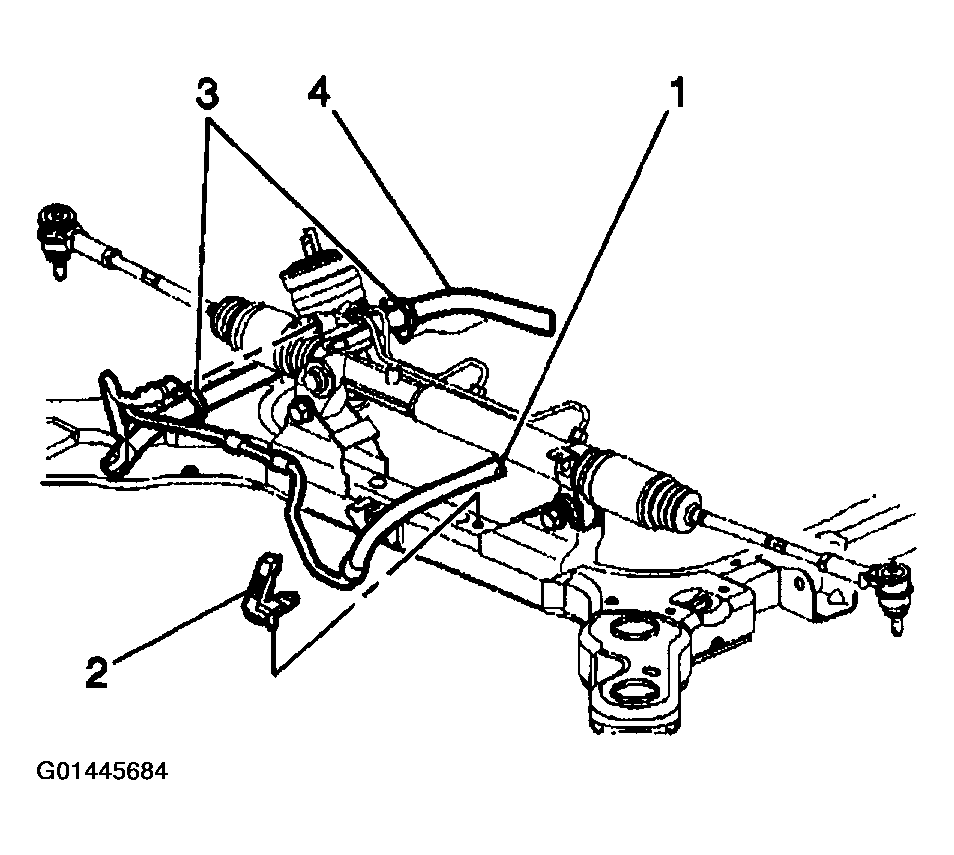

    Fig 1: Removing Power Steering Return Hose From Power Steering Gear
    G01445684Courtesy of GENERAL MOTORS CORP.
  5. Remove the power steering return hose from the power steering pump.

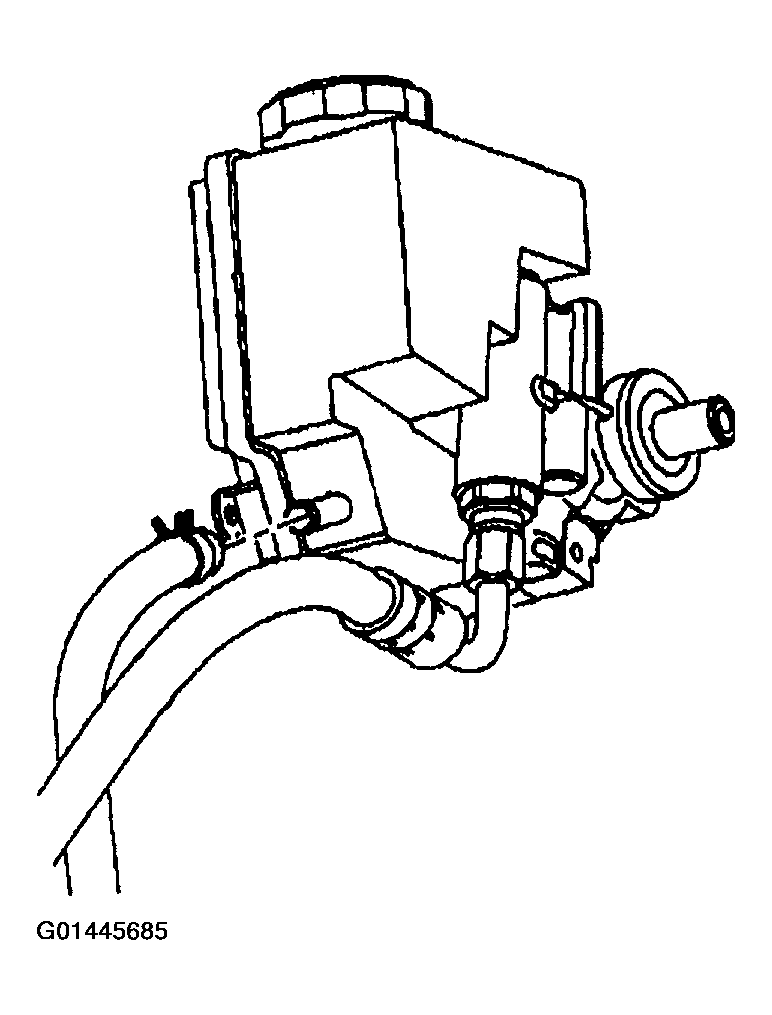

    Fig 2: Removing Power Steering Return Hose From Power Steering Pump
    G01445685Courtesy of GENERAL MOTORS CORP.
  6. Remove the power steering return hose retainers on the frame.

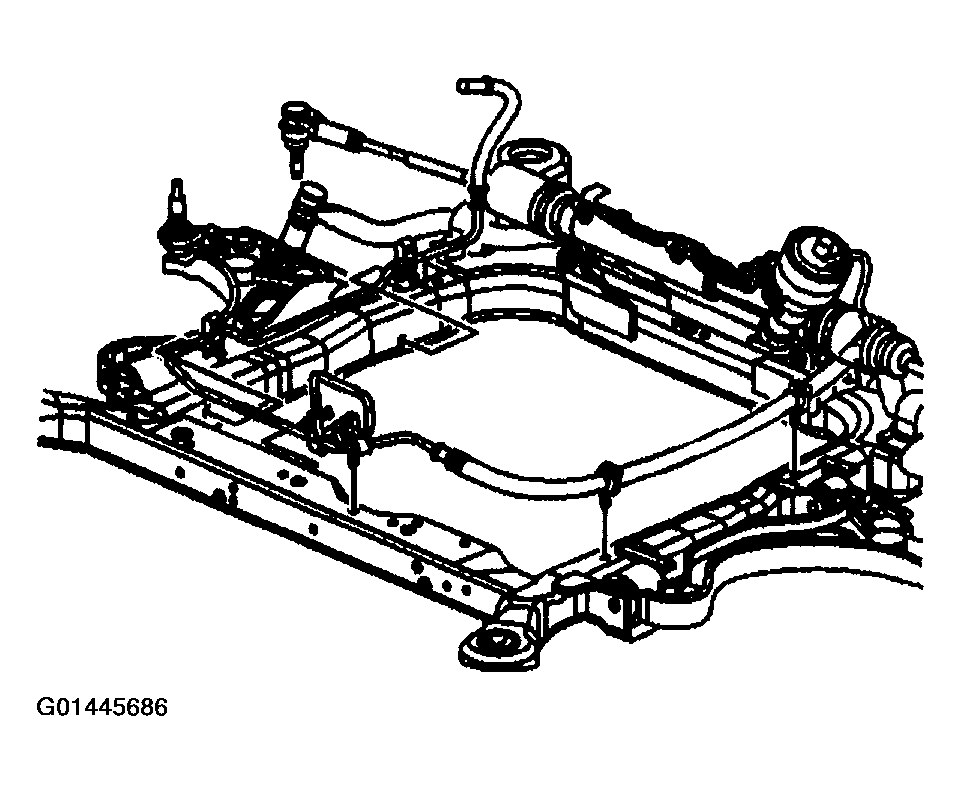

    Fig 3: Removing Power Steering Return Hose Retainers
    G01445686Courtesy of GENERAL MOTORS CORP.
  7. Remove the power steering return hose from the vehicle.
