Disassembly Procedure

  1. Remove the O-ring union fitting (5) from the hydraulic pump housing assembly (1).
  2. Remove the O-ring seal (4) from the O-ring union fitting (5).
  3. Remove the control valve assembly (3).
  4. Remove the flow control spring (2).

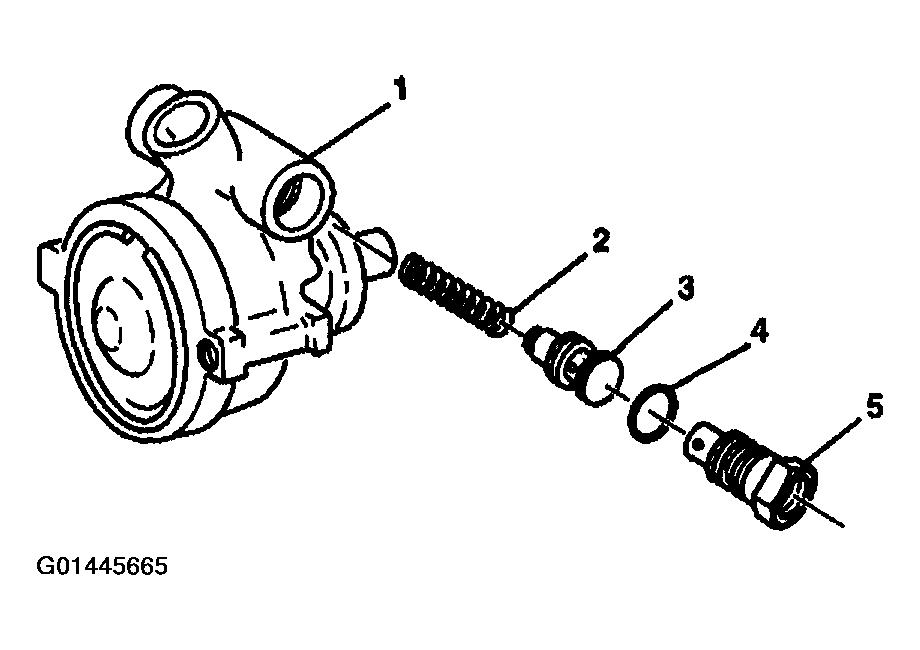

    Fig 1: Disassembling Control Valve Assembly
    G01445665Courtesy of GENERAL MOTORS CORP.
