Removal Procedure

  1. Remove the drive belt. Refer to DRIVE BELT REPLACEMENT (L36) or DRIVE BELT REPLACEMENT (L67) in Engine Mechanical-3.8 L.
  2. Remove the power steering pump. Refer to POWER STEERING PUMP REPLACEMENT  .
  3. Remove the power steering pulley from the power steering pump Using J 25034-C.

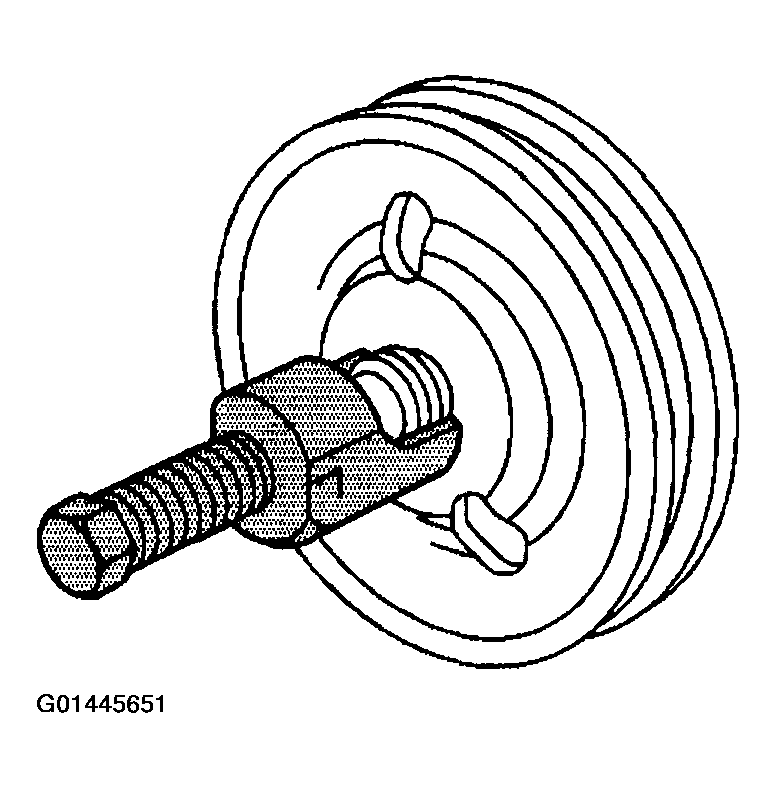

    Fig 1: Removing Power Steering Pulley
    G01445651Courtesy of GENERAL MOTORS CORP.
