Installation Procedure

  1. Install the power steering pressure hose to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the power steering pressure hose to the power steering pump.

    Tighten

    Tighten the power steering pressure hose to the power steering pump to 27 N.m (20 lb ft).

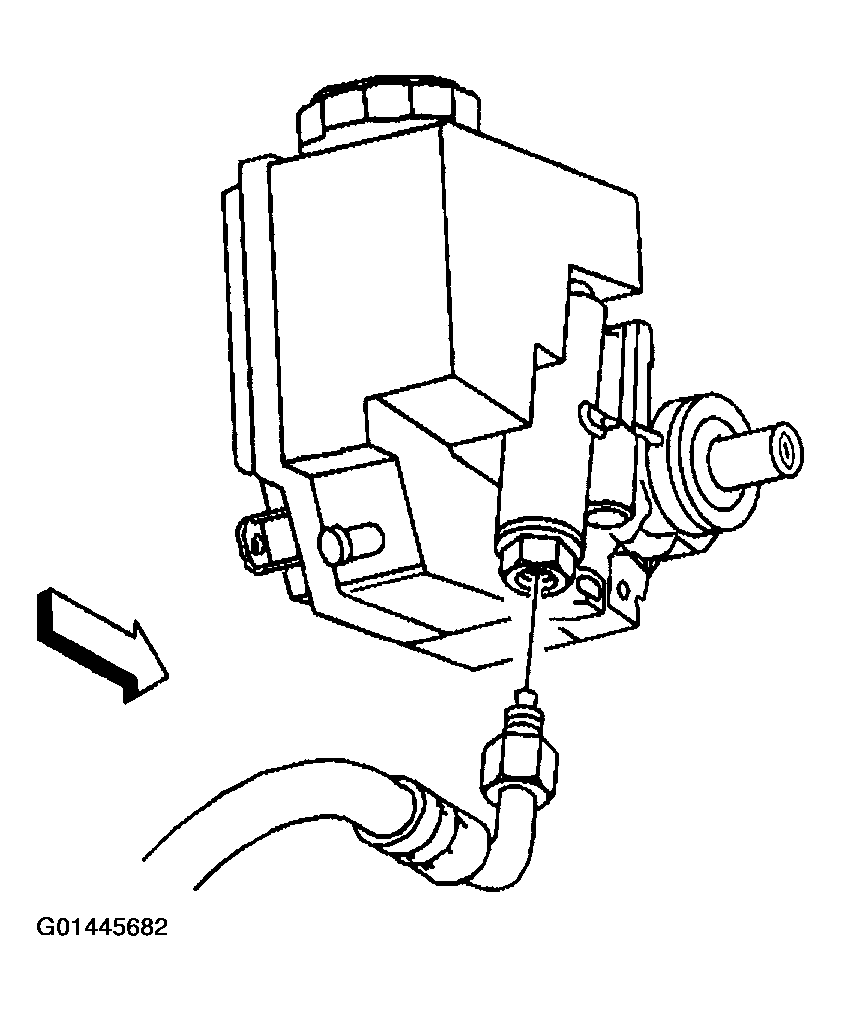

    Fig 1: Installing Power Steering Pressure Hose To Power Steering Pump
    G01445682Courtesy of GENERAL MOTORS CORP.
  3. Install the power steering pressure hose (1) to the power steering gear.

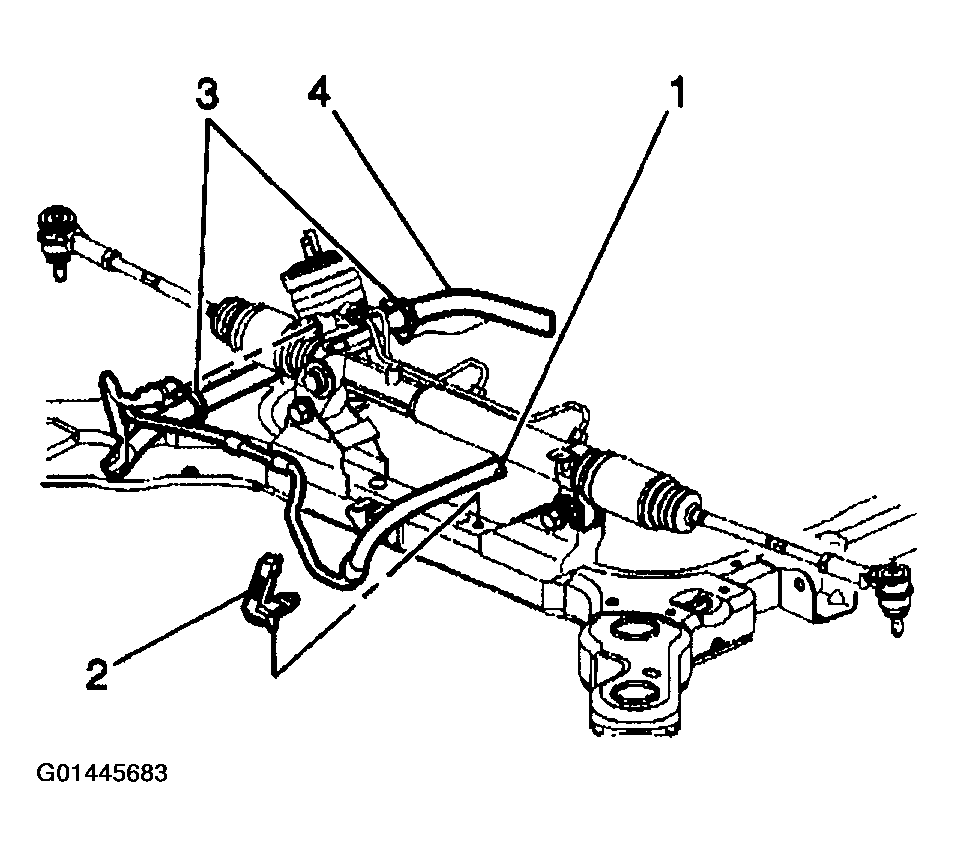

    Fig 2: Installing Power Steering Pressure Hose To Power Steering Gear
    G01445683Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the power steering pressure hose to the power steering gear to 27 N.m (20 lb ft).

  4. Install the retainers and the bolts.

    Tighten

    Tighten the retainer bolts to 6 N.m (53 lb in).

  5. Install the power steering gear heat shield. Refer to POWER STEERING GEAR HEAT SHIELD REPLACEMENT  .
  6. Lower the vehicle.
  7. Bleed the power steering system. Refer to BLEEDING THE POWER STEERING SYSTEM  .
