Home >> Buick >> 2003 >> Park Avenue Base >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt System >> Repair Instructions >> Child Restraint Tether Anchor Replacement >> Removal Procedure

Removal Procedure

  1. Remove the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
  2. Remove the fasteners from the child tether anchors.
  3. Remove the child tether anchors from the vehicle.

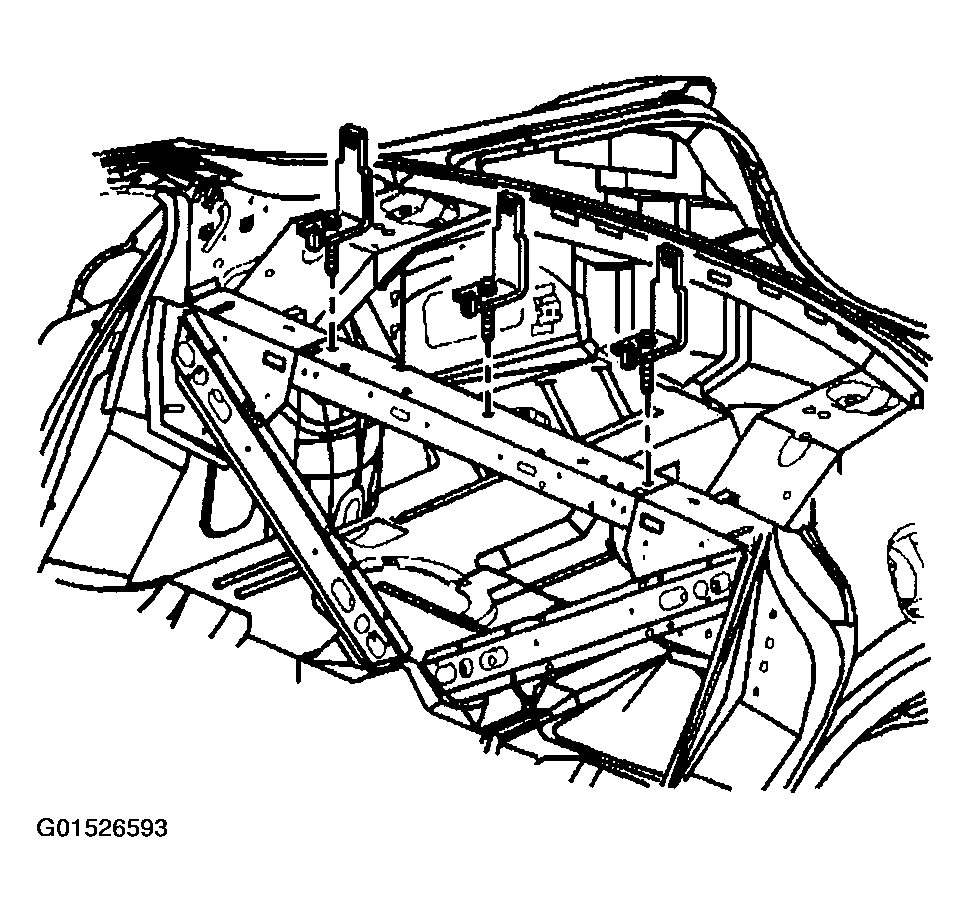

    Fig 1: Removing Child Restraint Tether Anchor
    G01526593Courtesy of GENERAL MOTORS CORP.
