Installation Procedure

  1. Install the child tether anchors to the vehicle.

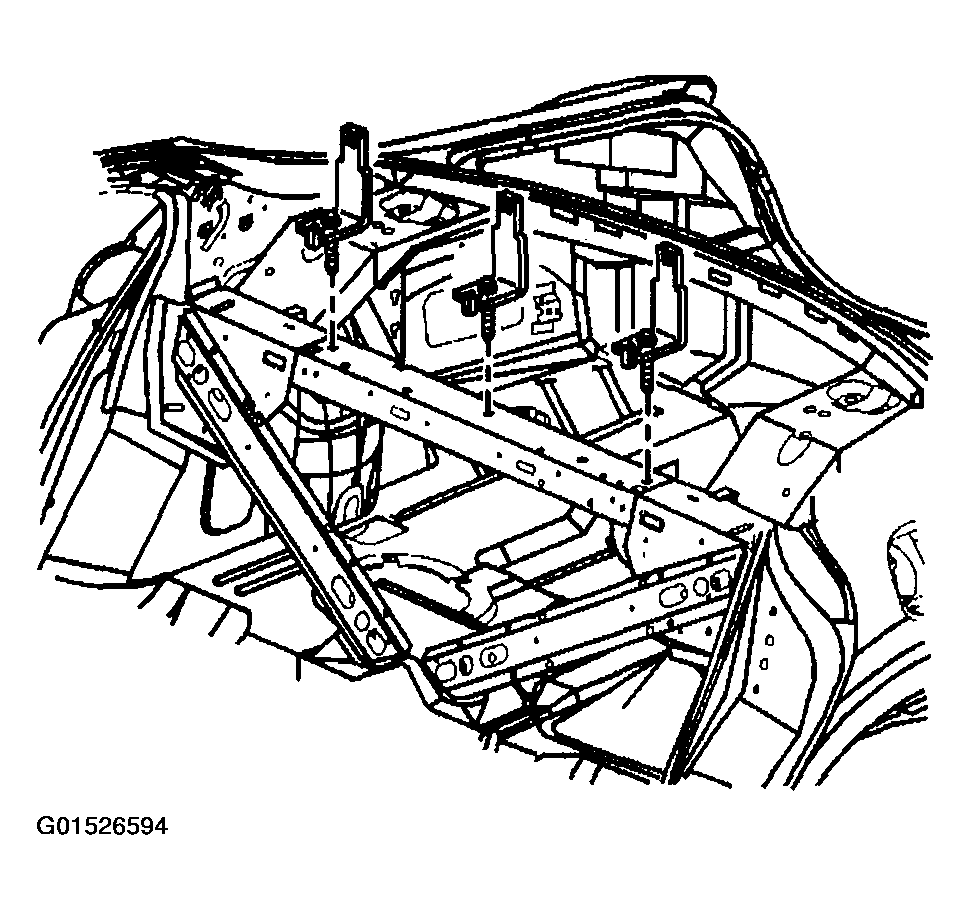

    Fig 1: Installing Child Restraint Tether Anchor
    G01526594Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the child tether anchor fasteners.

    Tighten

    Tighten the fastener to 30 N.m (22 lb. ft).

  3. Install the rear shelf trim panel. Refer to TRIM PANEL REPLACEMENT - REAR WINDOW SHELF in Interior Trim.
