Reading Lamp Switch Connector End View - RF

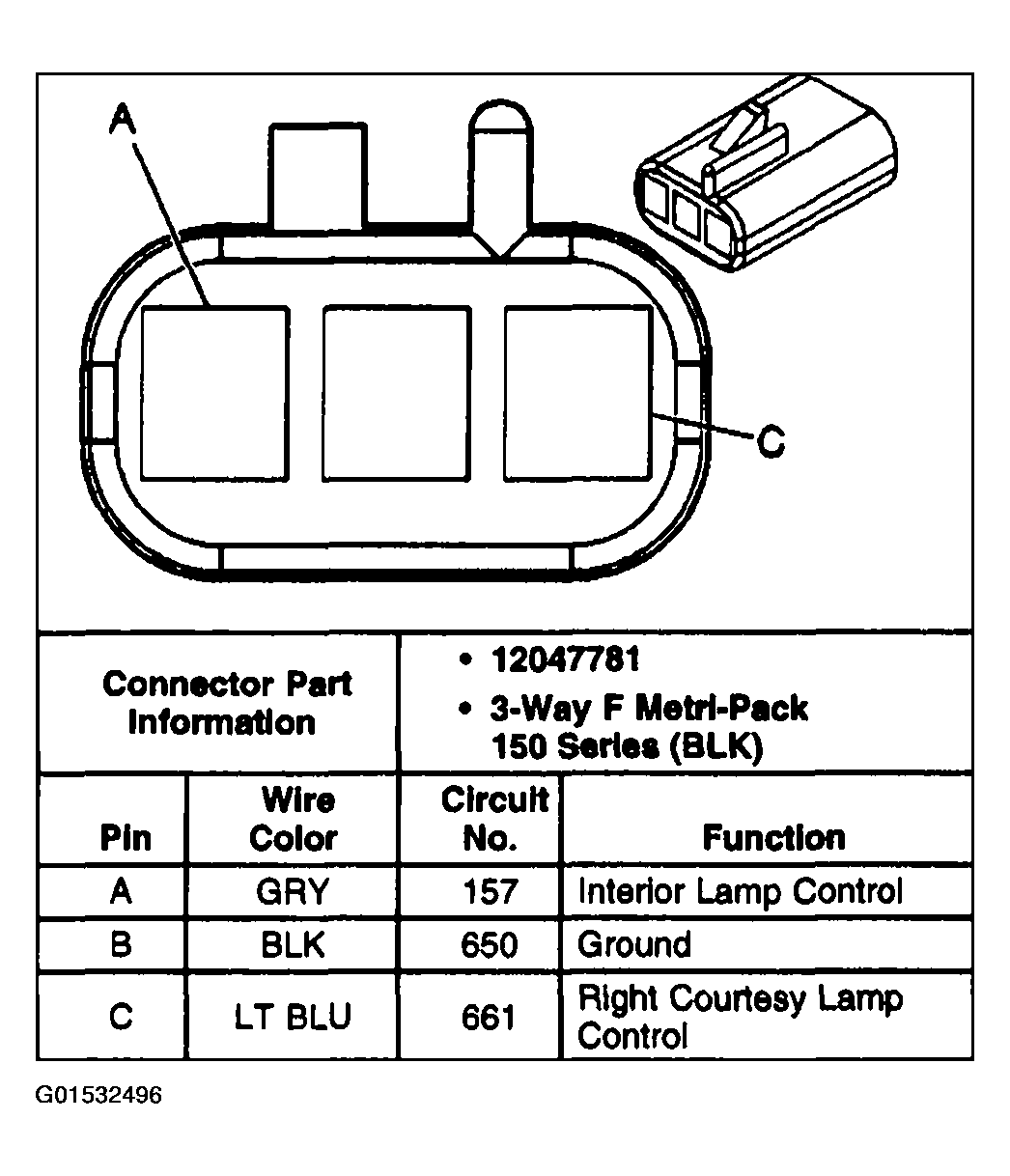

Fig 1: Reading Lamp Switch - RF

G01532496

Courtesy of GENERAL MOTORS CORP.
