Reading Lamp Switch Connector End View - LR

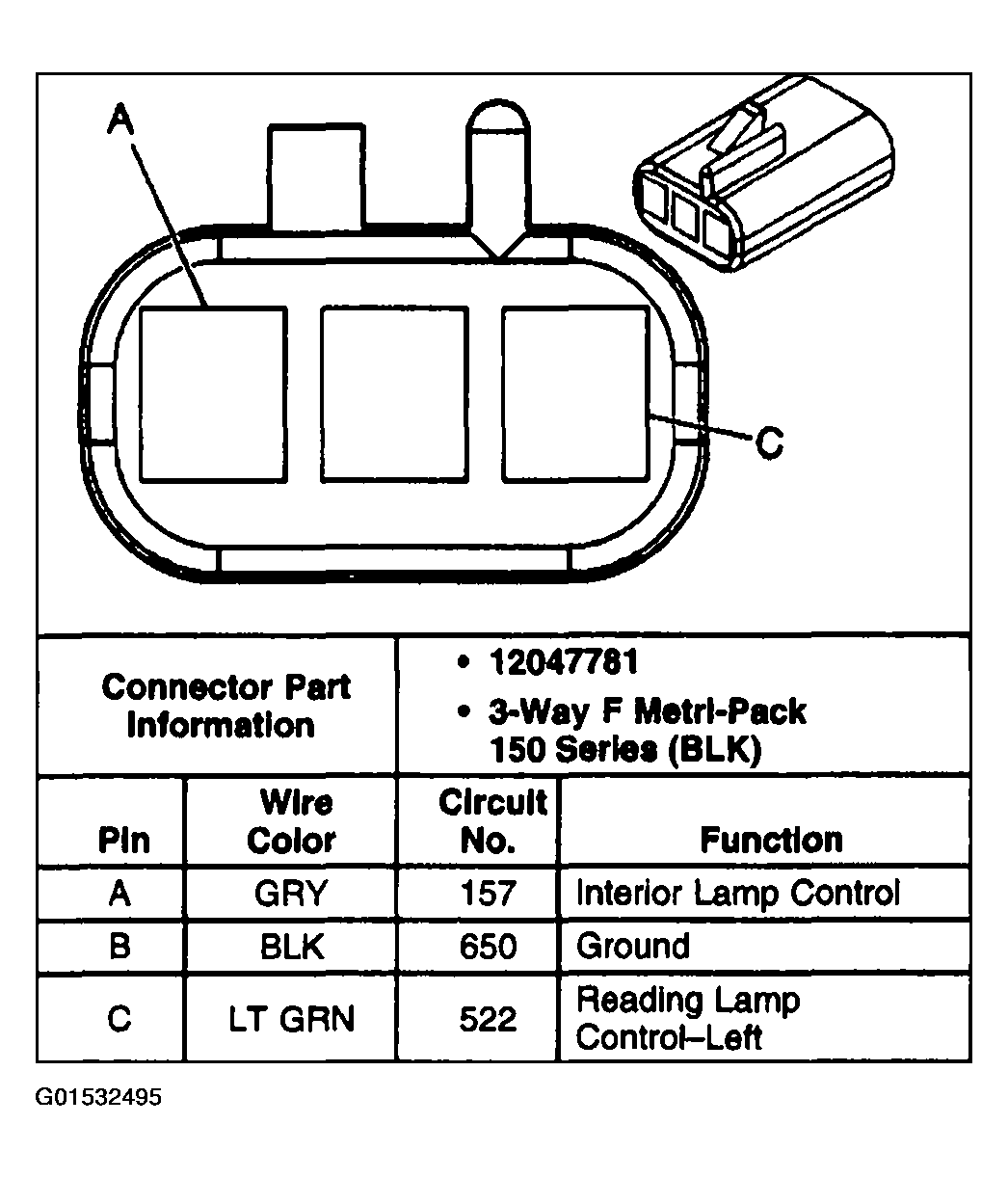

Fig 1: Reading Lamp Switch - LR

G01532495

Courtesy of GENERAL MOTORS CORP.
