Reading Lamp Switch Connector End View - LF

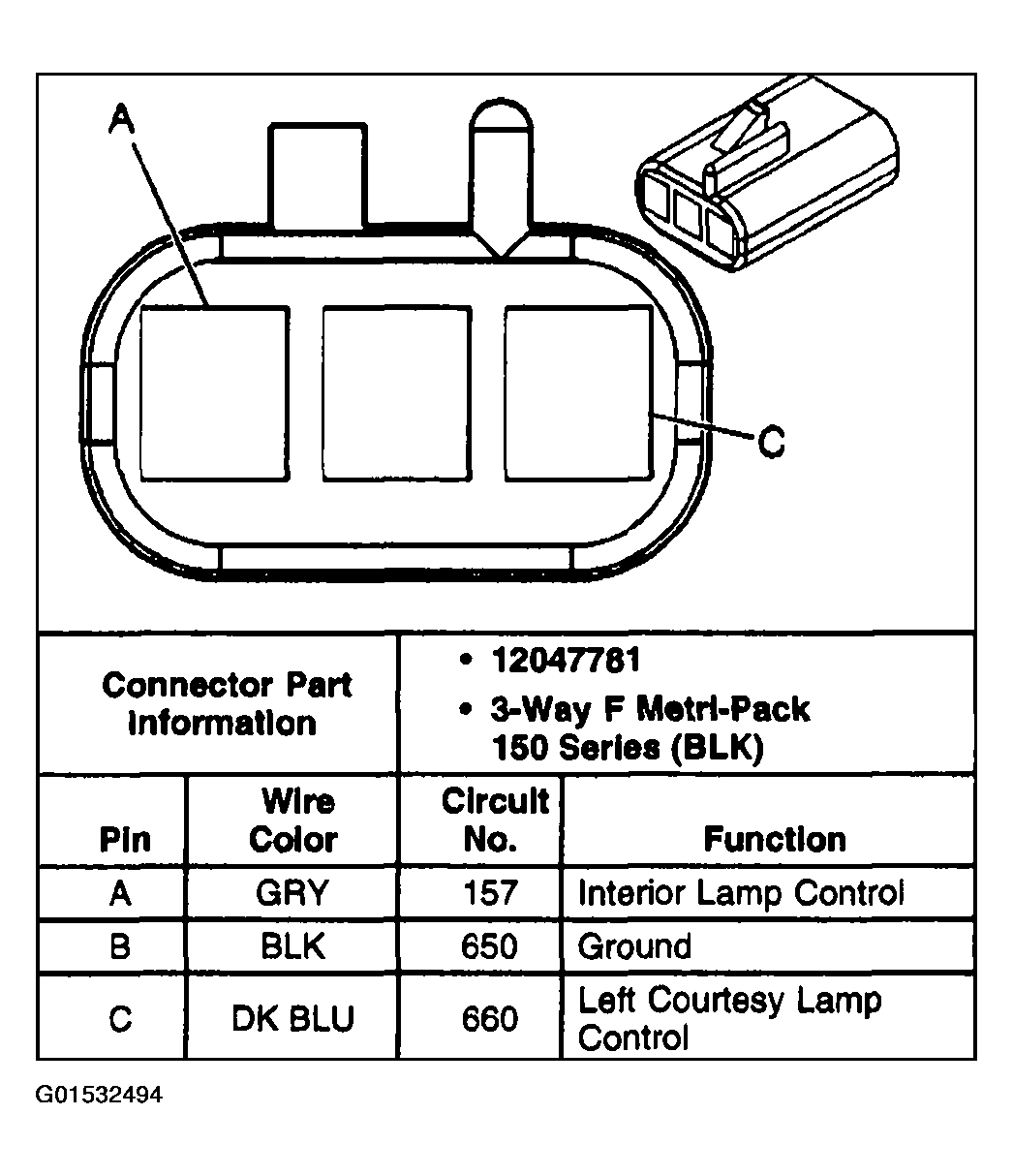

Fig 1: Reading Lamp Switch - LF

G01532494

Courtesy of GENERAL MOTORS CORP.
