Power Sunroof Express Module Connector End View C2 (2 Of 2)

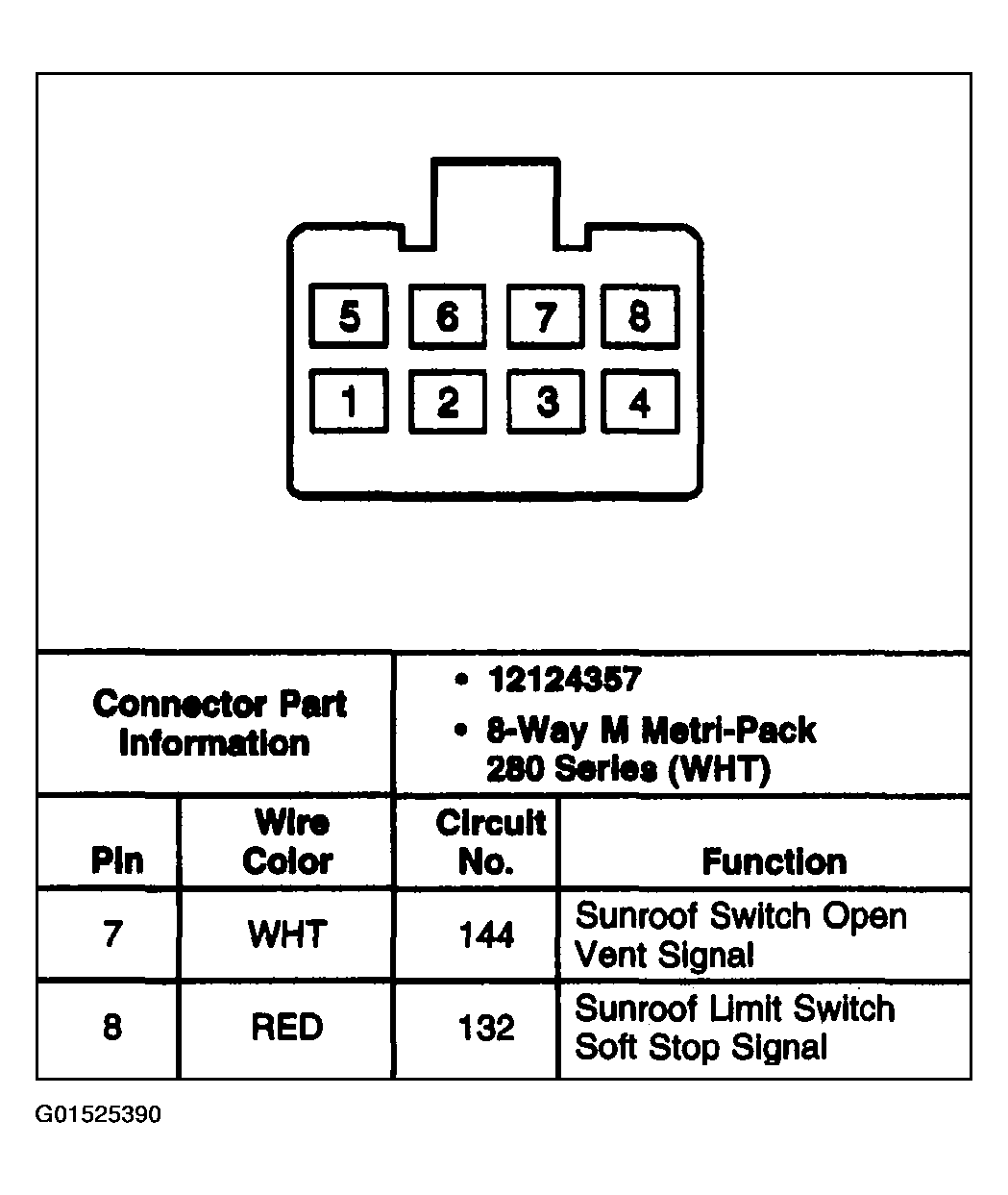

Fig 1: Power Sunroof Express Module C2 (2 Of 2)

G01525390

Courtesy of GENERAL MOTORS CORP.
