Head-Up Display Connector End View

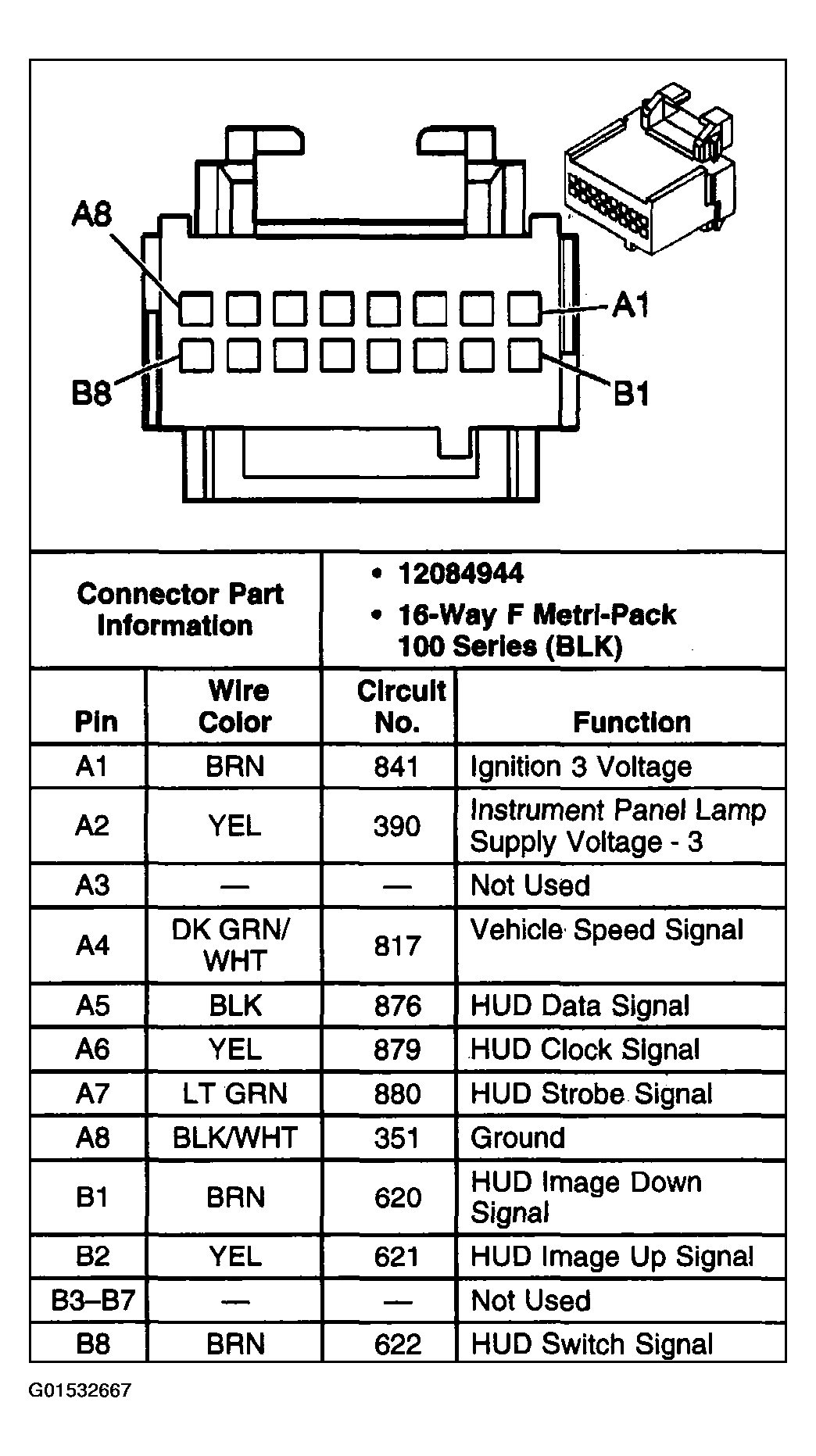

Fig 1: Head-Up Display

G01532667

Courtesy of GENERAL MOTORS CORP.
