Ambient Air Temperature Sensor Connector End View

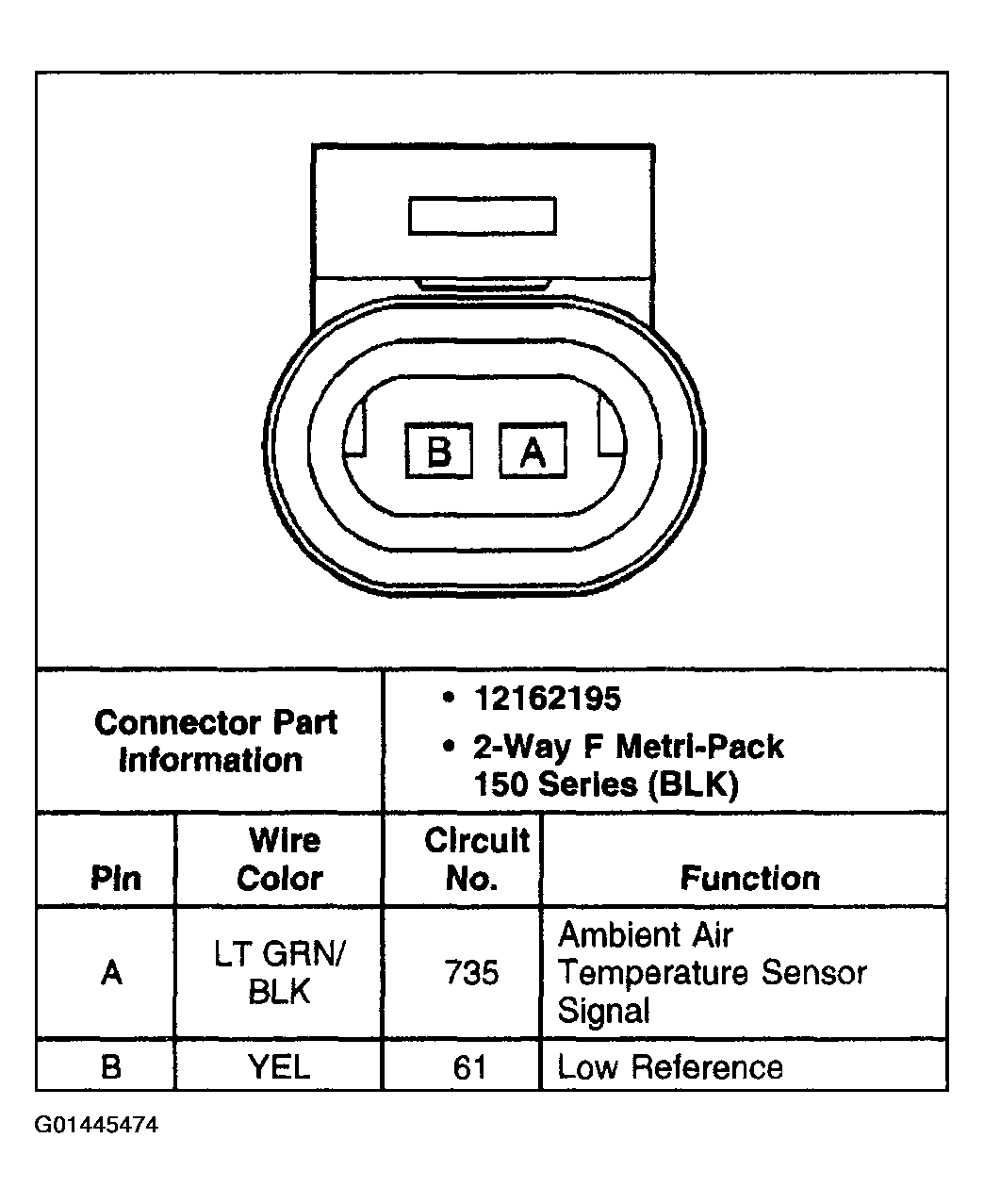

Fig 1: Ambient Air Temperature Sensor

G01445474

Courtesy of GENERAL MOTORS CORP.
