Air Temperature Switch Assembly Connector End View - Right

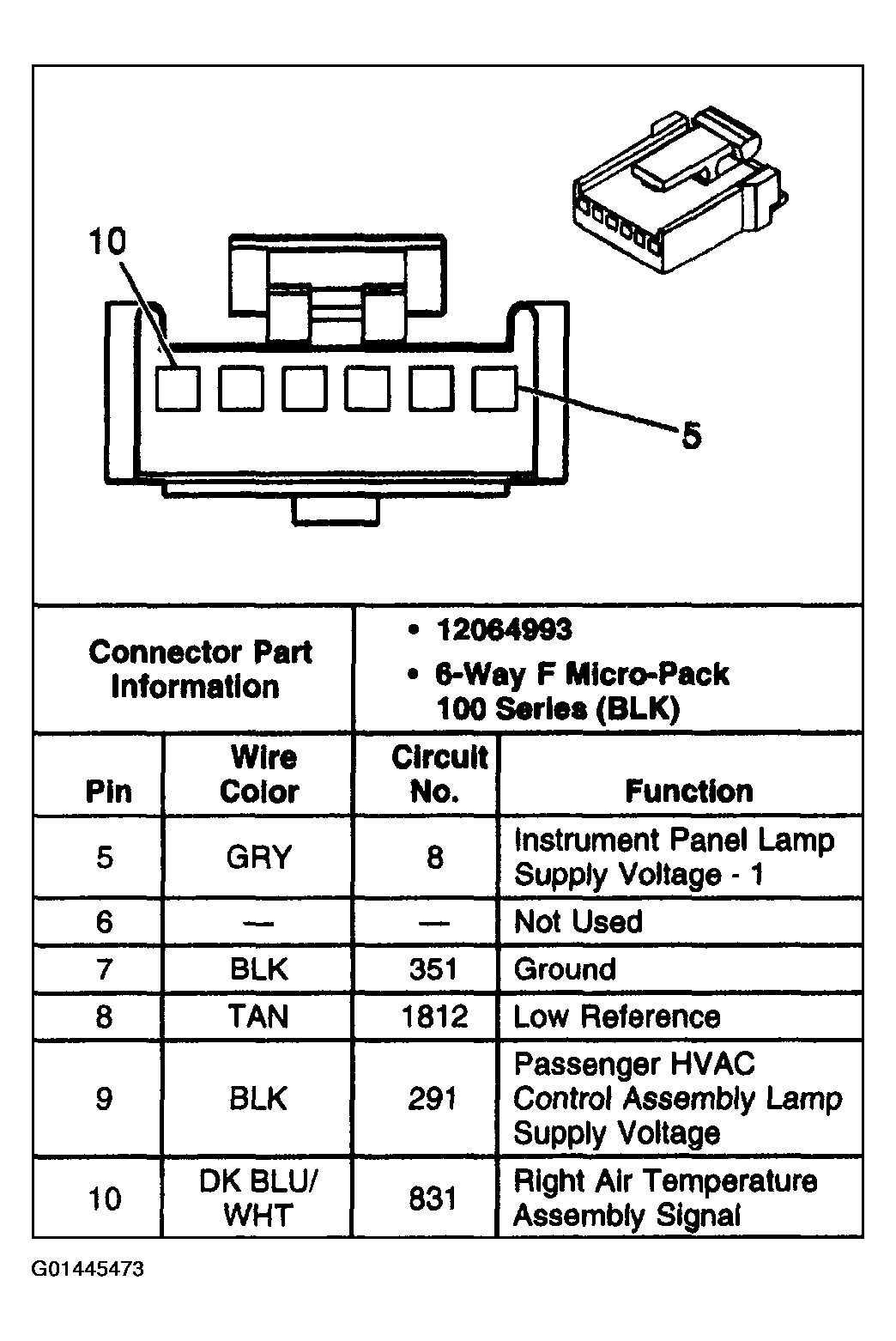

Fig 1: Air Temperature Switch Assembly - Right

G01445473

Courtesy of GENERAL MOTORS CORP.
