ABS Component Views

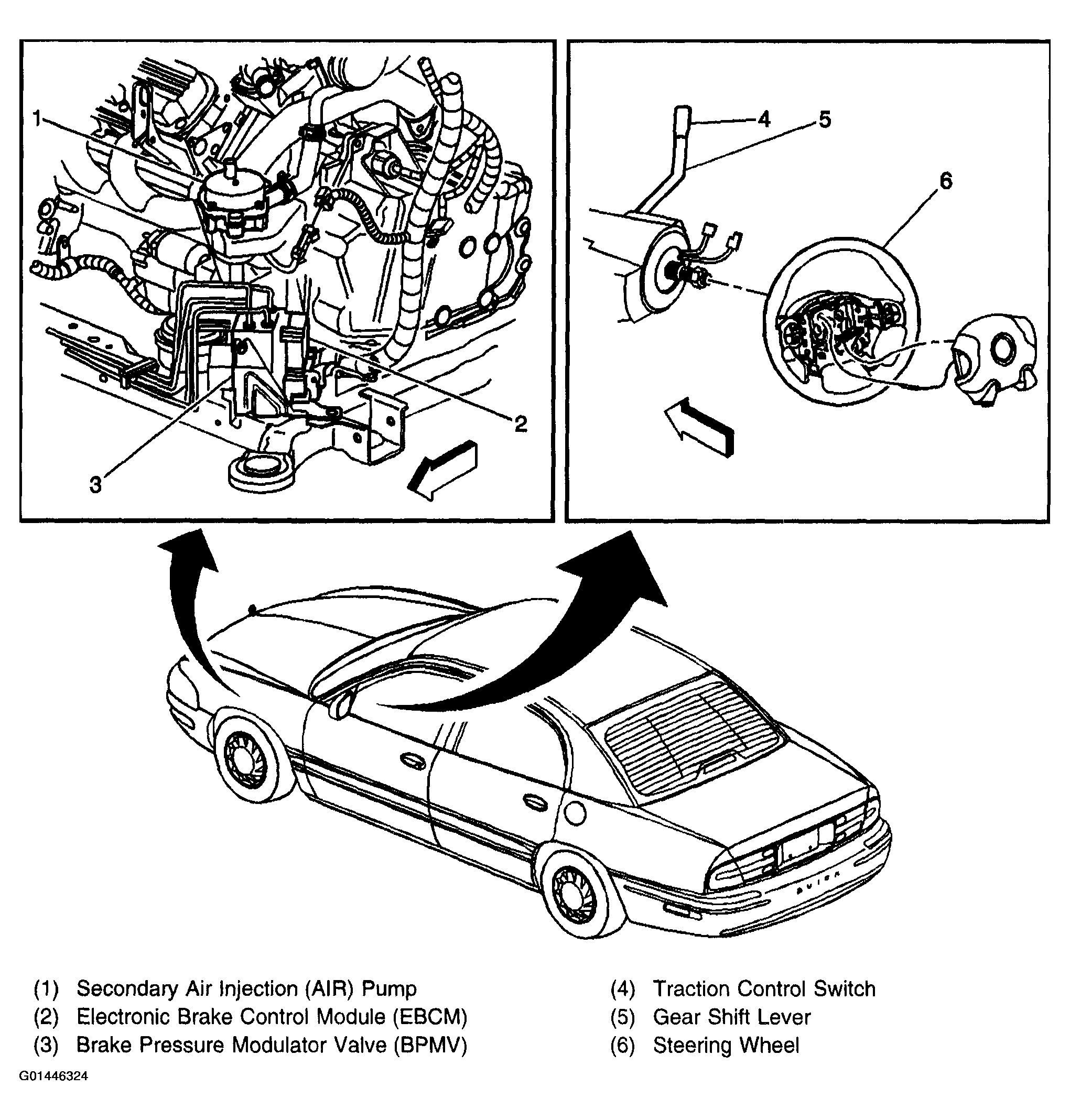

Fig 1: EBCM And Switch
Courtesy of GENERAL MOTORS CORP.

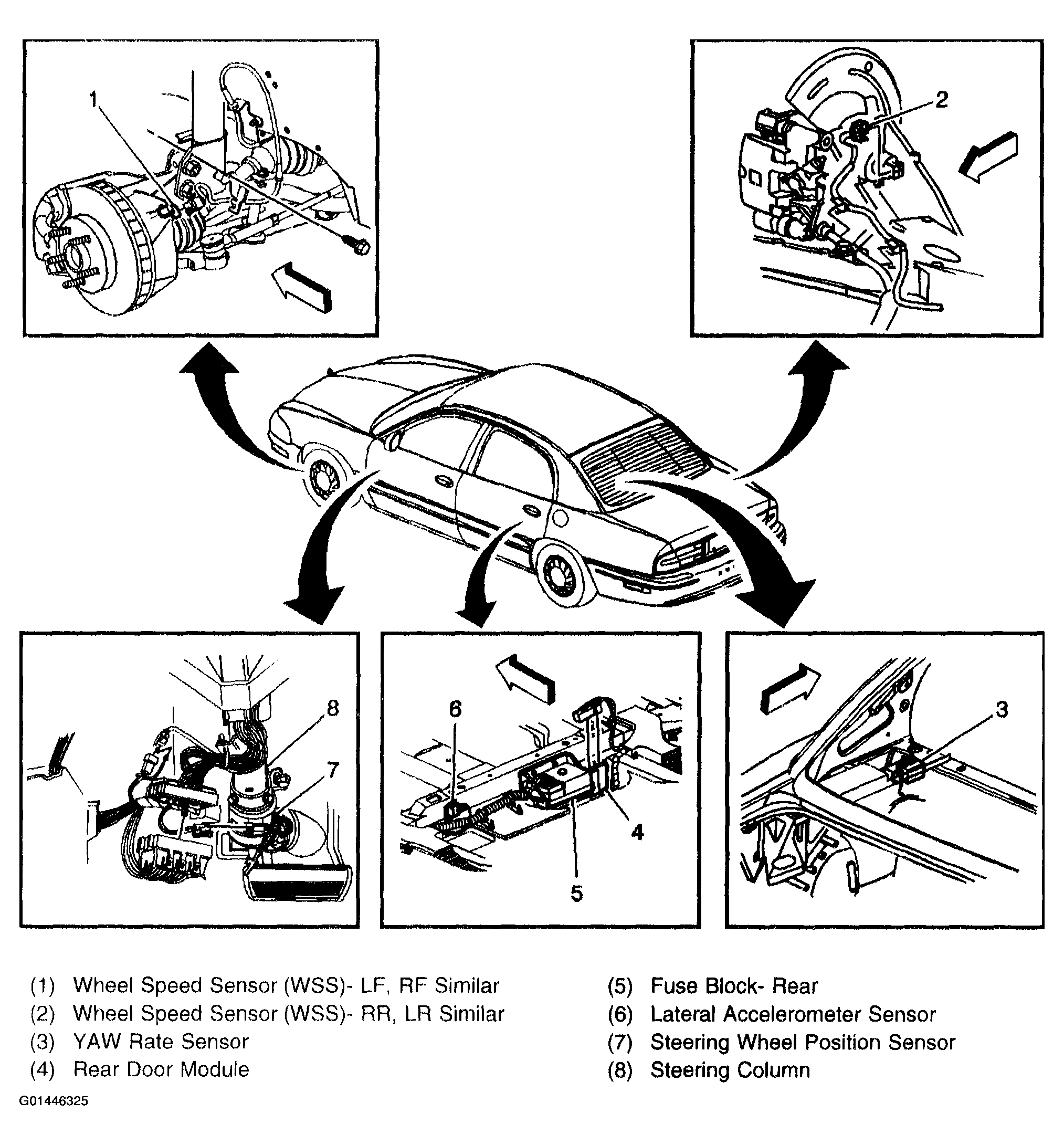

Fig 2: Sensors
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
