Home >> Buick >> 2003 >> Park Avenue Base >> Repair and Diagnosis >> Body & Frame >> Windows >> Stationary Window System >> Component Locator >> Stationary Windows Connector End Views

Stationary Windows Connector End Views

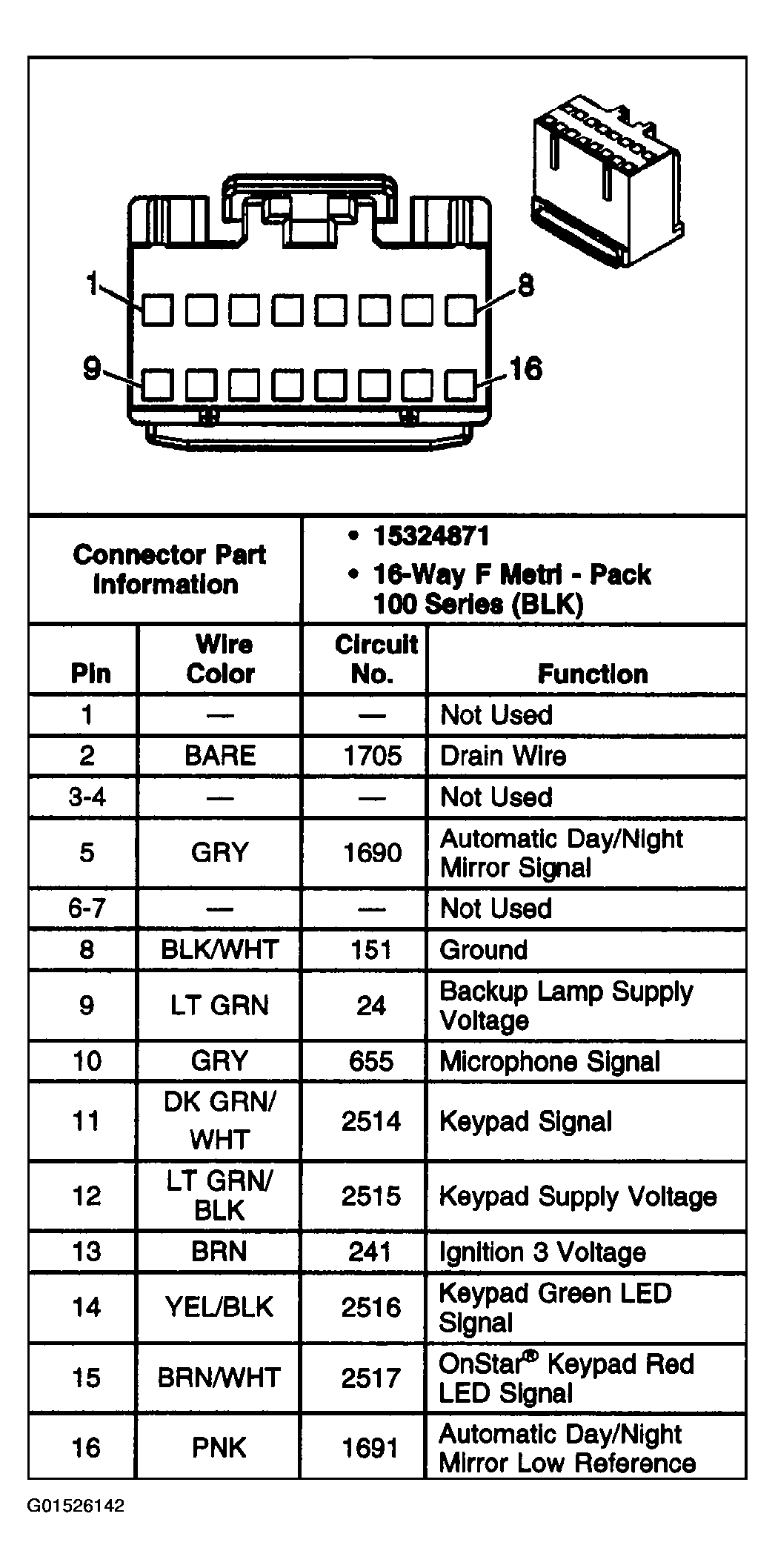

Fig 1: Inside Rearview Mirror

G01526142

Courtesy of GENERAL MOTORS CORP.
