Installation Procedure

  1. Insert the upper portion of the cigarette lighter into the opening.

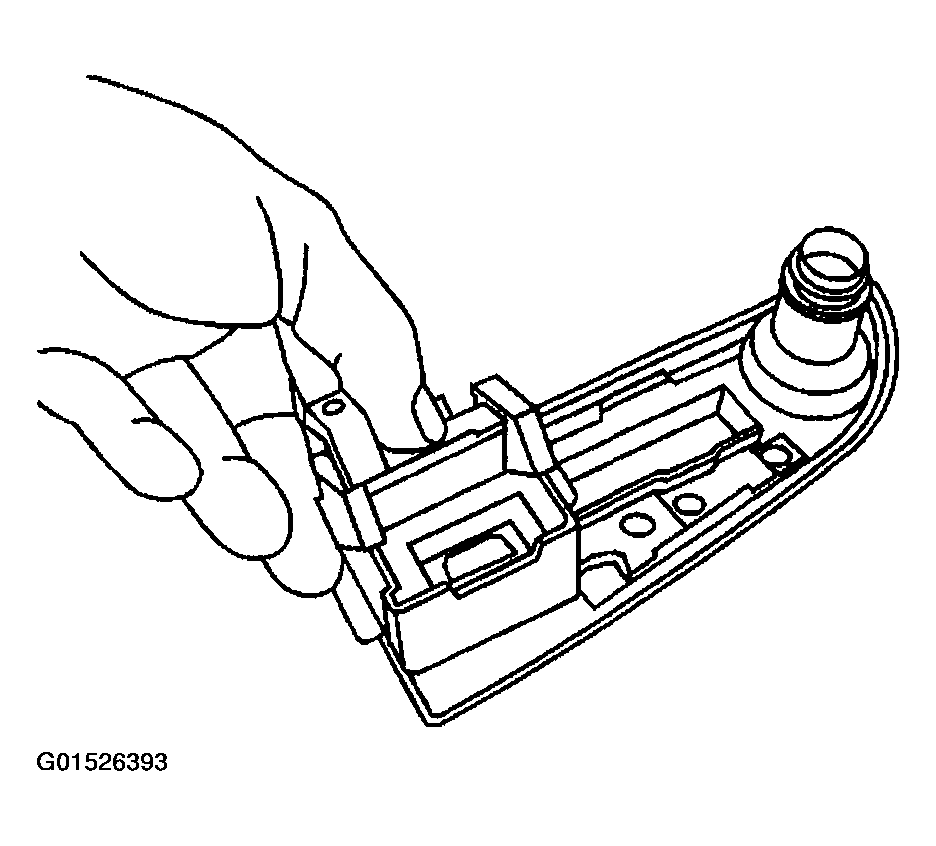

    Fig 1: View Of Switch Plate
    G01526393Courtesy of GENERAL MOTORS CORP.
  2. Screw the lower portion of the cigarette lighter onto the upper portion in order to retain it to the switch plate.
  3. Install the power window switch into the switch plate.
  4. Install the switch plate. Refer to POWER WINDOW SWITCH REPLACEMENT - REAR DOOR  .
