Body Control Module Connector End View C2

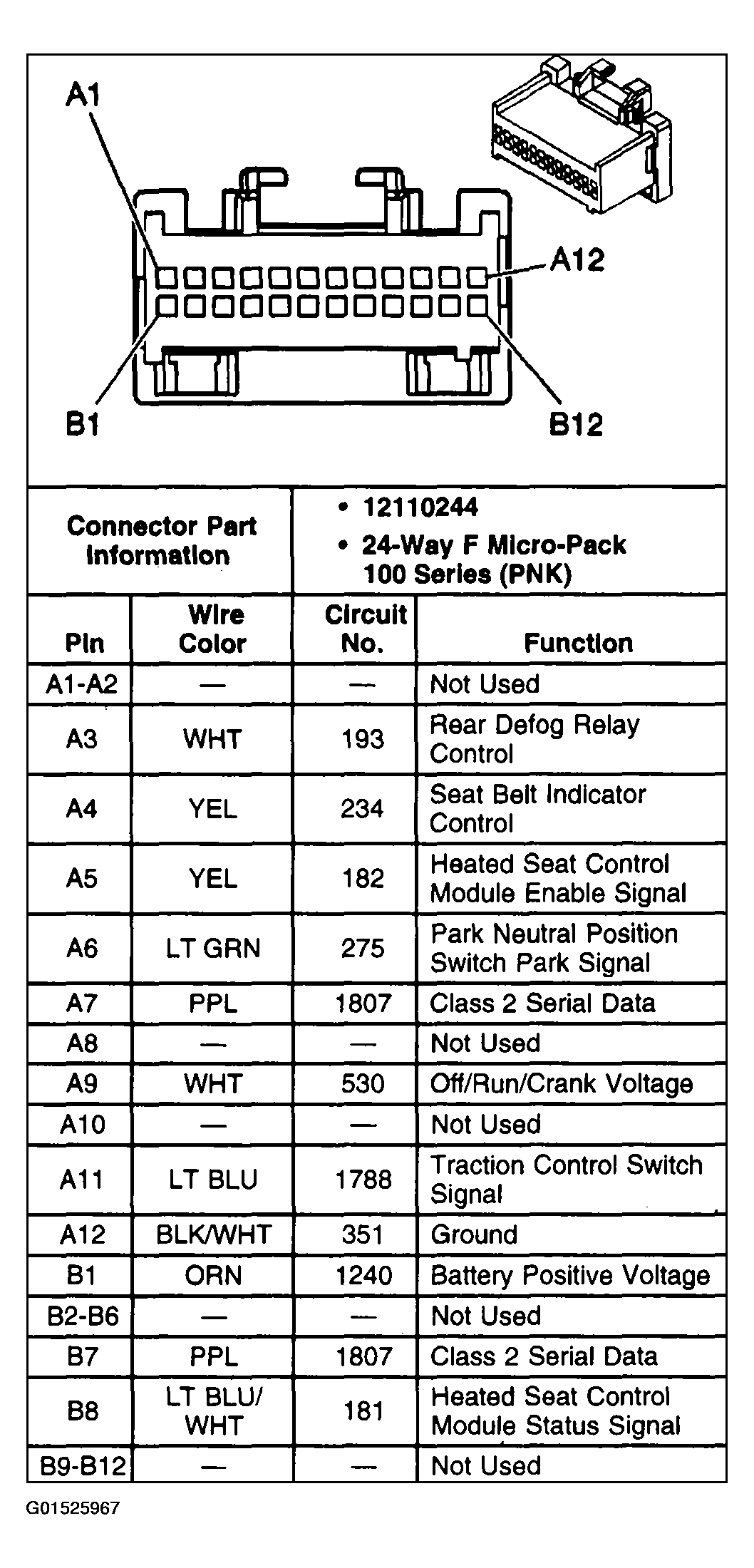

Fig 1: Body Control Module C2

G01525967

Courtesy of GENERAL MOTORS CORP.
