Lamp Control Module Connector End View C1

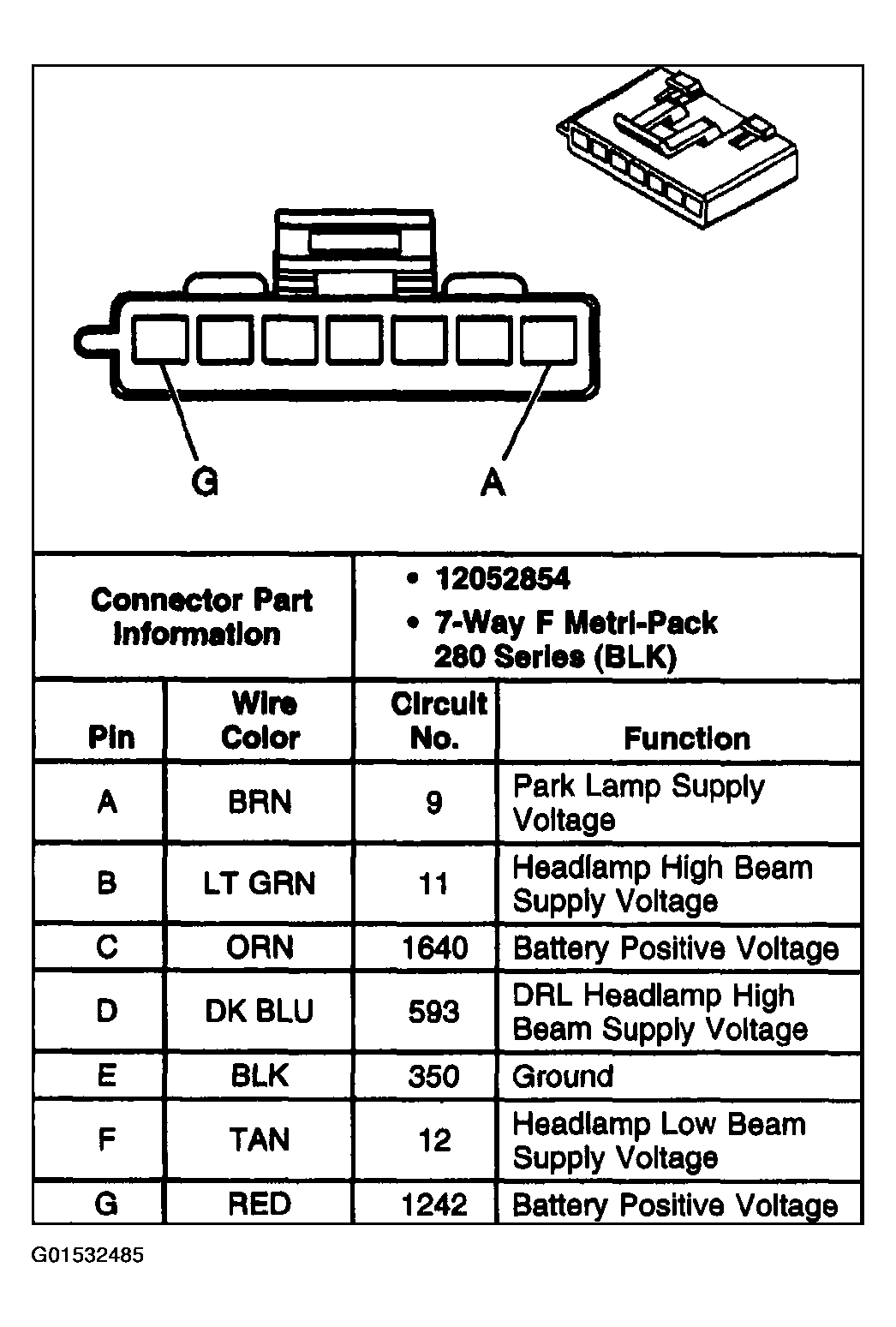

Fig 1: Lamp Control Module C1

G01532485

Courtesy of GENERAL MOTORS CORP.
