Installation Procedure

  1. Position the RFA module (1) into the shelf.

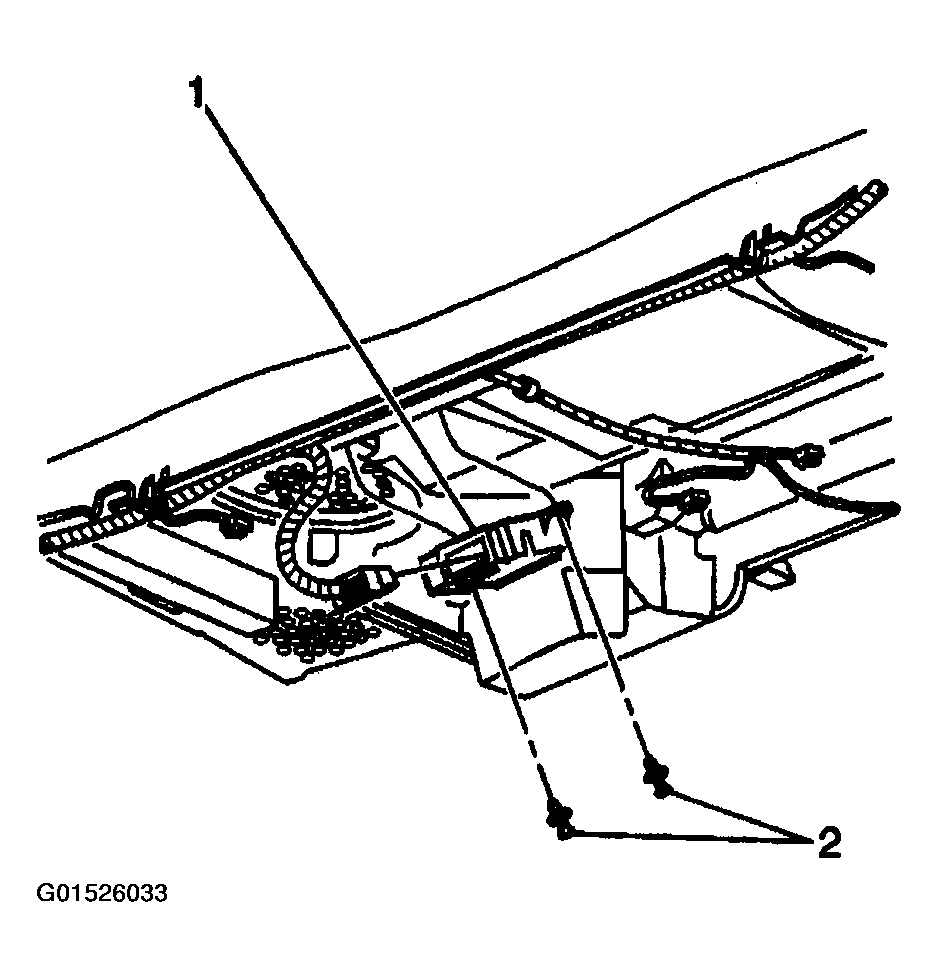

    Fig 1: Installing Remote Control Door Lock Receiver
    G01526033Courtesy of GENERAL MOTORS CORP.
  2. Install the module retainers (2).
  3. Connect the electrical connector.
  4. Install rear storage compartment trim. Refer to COMPARTMENT TRIM PANEL REPLACEMENT - REAR in Body Rear End.
  5. Program RFA module. Refer to TRANSMITTER PROGRAMMING  .
