Keyless Entry Component Views

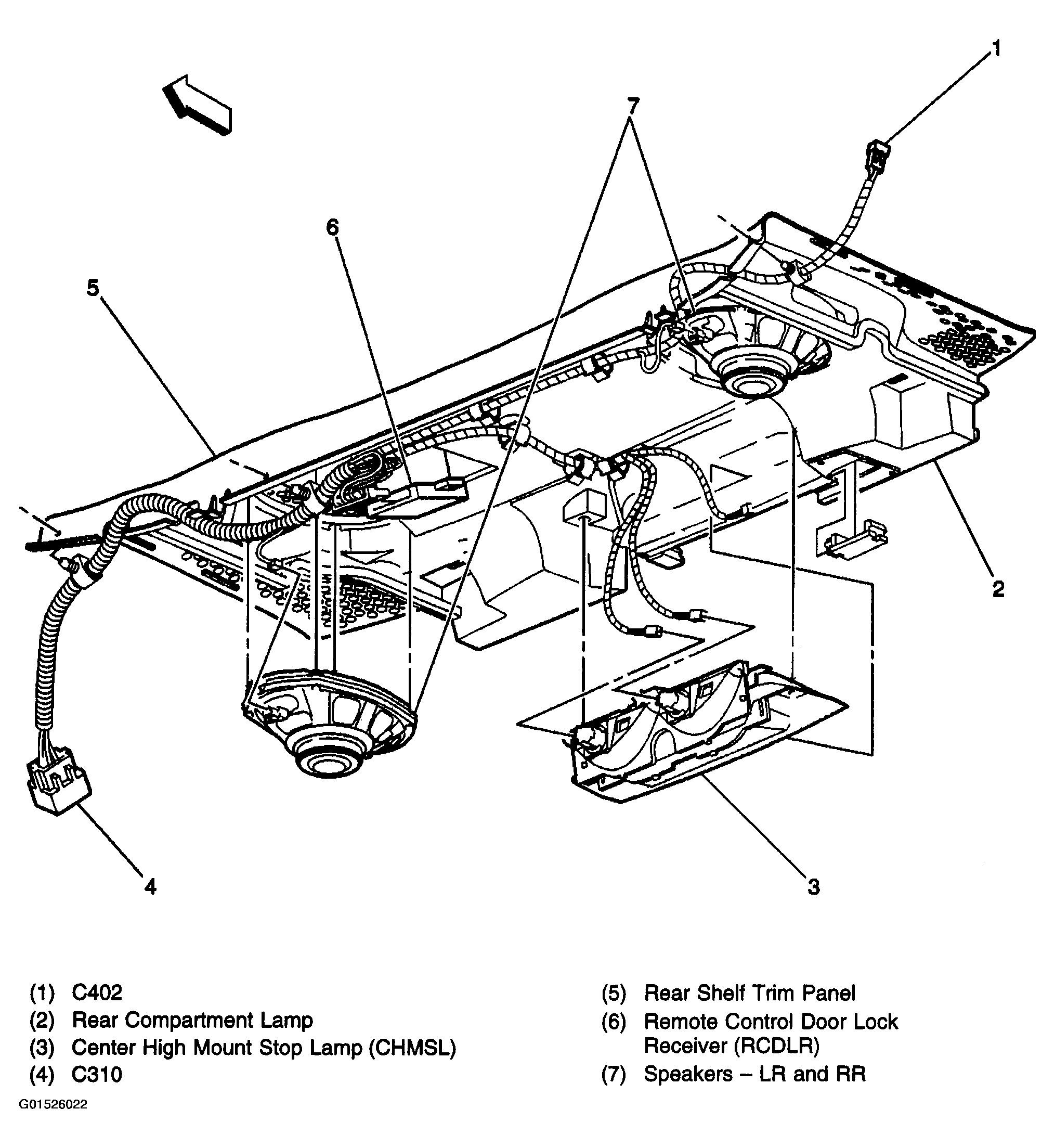

Fig 1: Rear Compartment, Below Rear Shelf Trim Panel

G01526022

Courtesy of GENERAL MOTORS CORP.
