Installation Procedure

  1. Install the cruise control module (1) to the bracket (2).

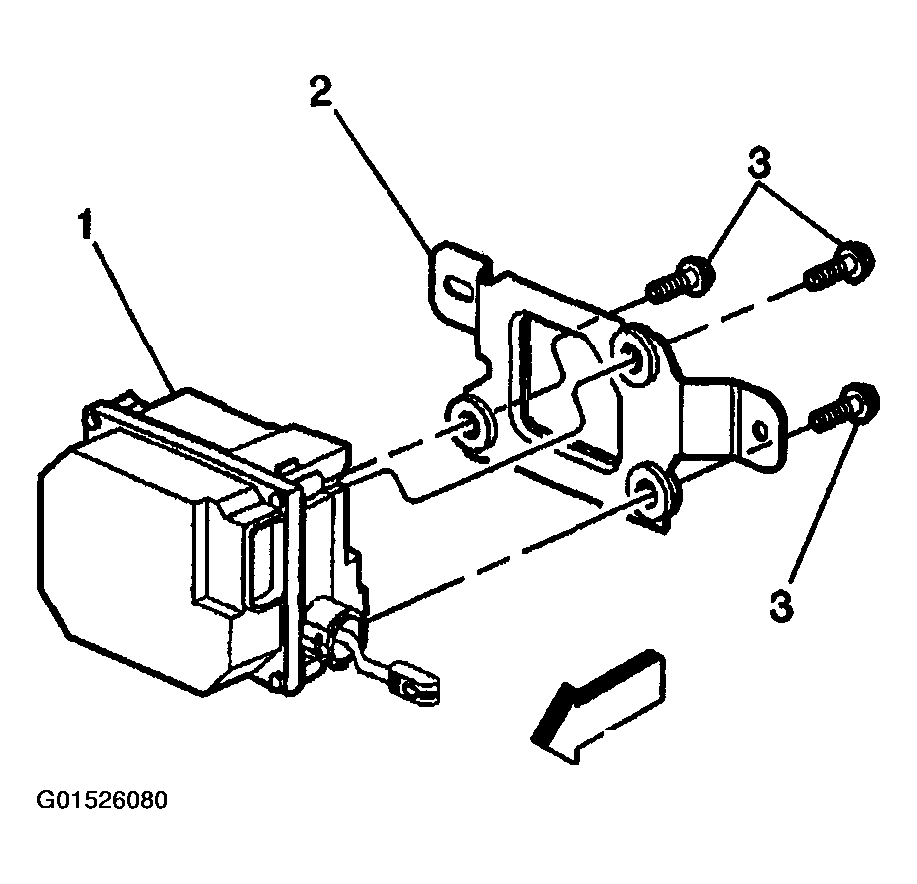

    Fig 1: Installing Cruise Control Module To Bracket
    G01526080Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the module to the bracket bolts (3).

    Tighten

    Tighten the fasteners to 7.5 N.m (66 lb.in).

  3. Install the cruise control module (1) onto the studs on the cowl.
  4. Install the 2 nuts (2).

    Tighten

    Tighten the bracket retaining nuts to 9 N.m (80 lb.in).

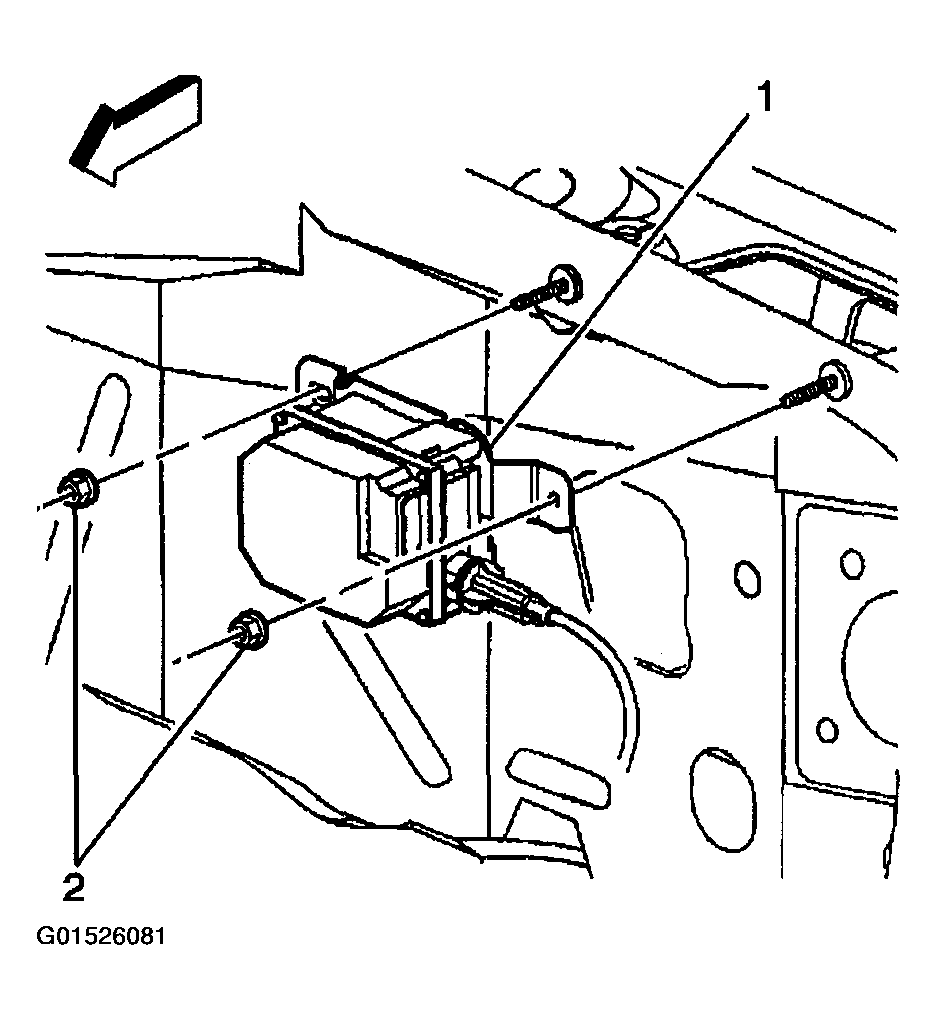

    Fig 2: Installing Cruise Control Module Onto Studs On Cowl
    G01526081Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector to the module.
    IMPORTANT: Do not twist the ribbon when connecting the cable to the module.
    IMPORTANT: The cruise control cable does not require mechanical adjusting after the replacement. The cruise control module internally adjusts the cable.

    Refer to CRUISE CONTROL DESCRIPTION AND OPERATION  for the complete operational details.

  6. Install the cruise control cable (1) to the module assembly connector (3).
    Fig 3: Installing Cruise Control Cable To Module Assembly Connector
    G01526082Courtesy of GENERAL MOTORS CORP.
  7. Install the cruise control cable housing connector to the engine bracket and throttle body.

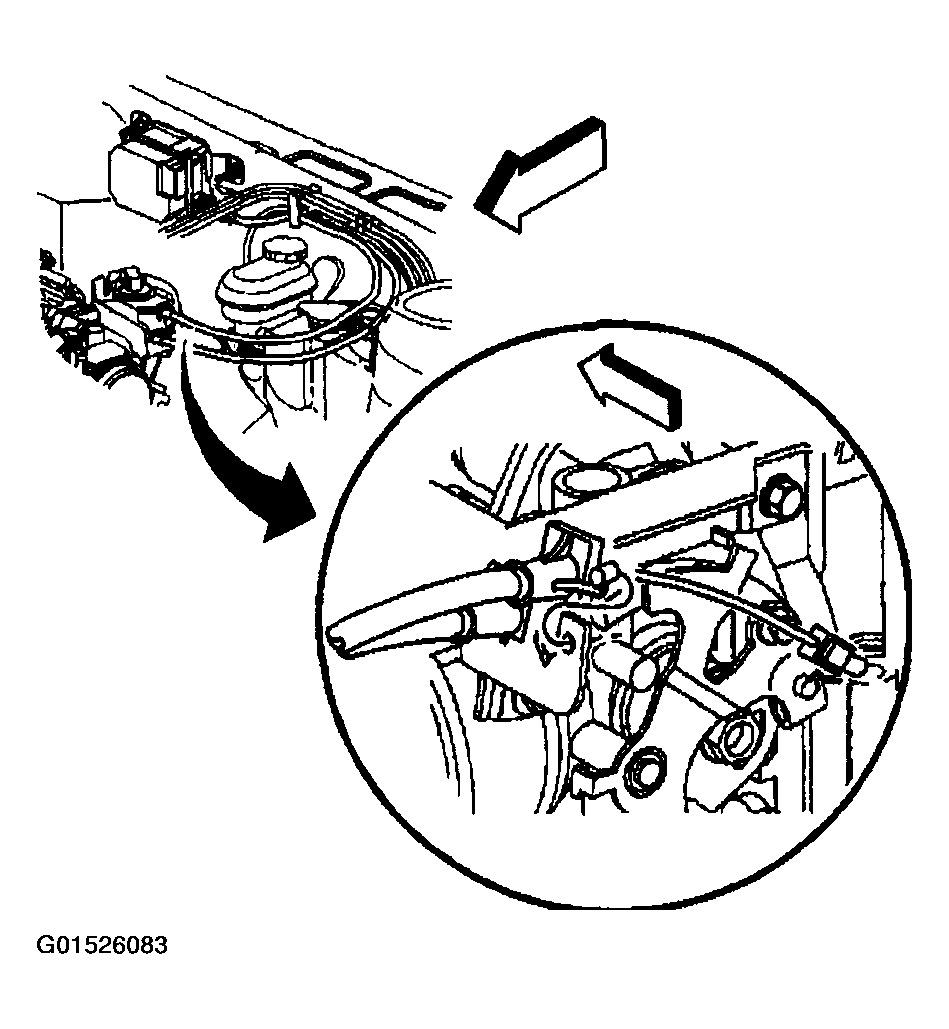

    Fig 4: Installing Cruise Control Cable Housing Connector To Engine Bracket & Throttle Body
    G01526083Courtesy of GENERAL MOTORS CORP.
