Installation Procedure

IMPORTANT: After the IPM is replaced, recalibrate the actuators for proper travel. Turn ON the ignition for 3 minutes to recalibrate the IPM and the actuators for proper travel.
  1. Connect the electrical connectors to the IPM.
  2. Install the IPM (1) into the retainer on the bracket (2).

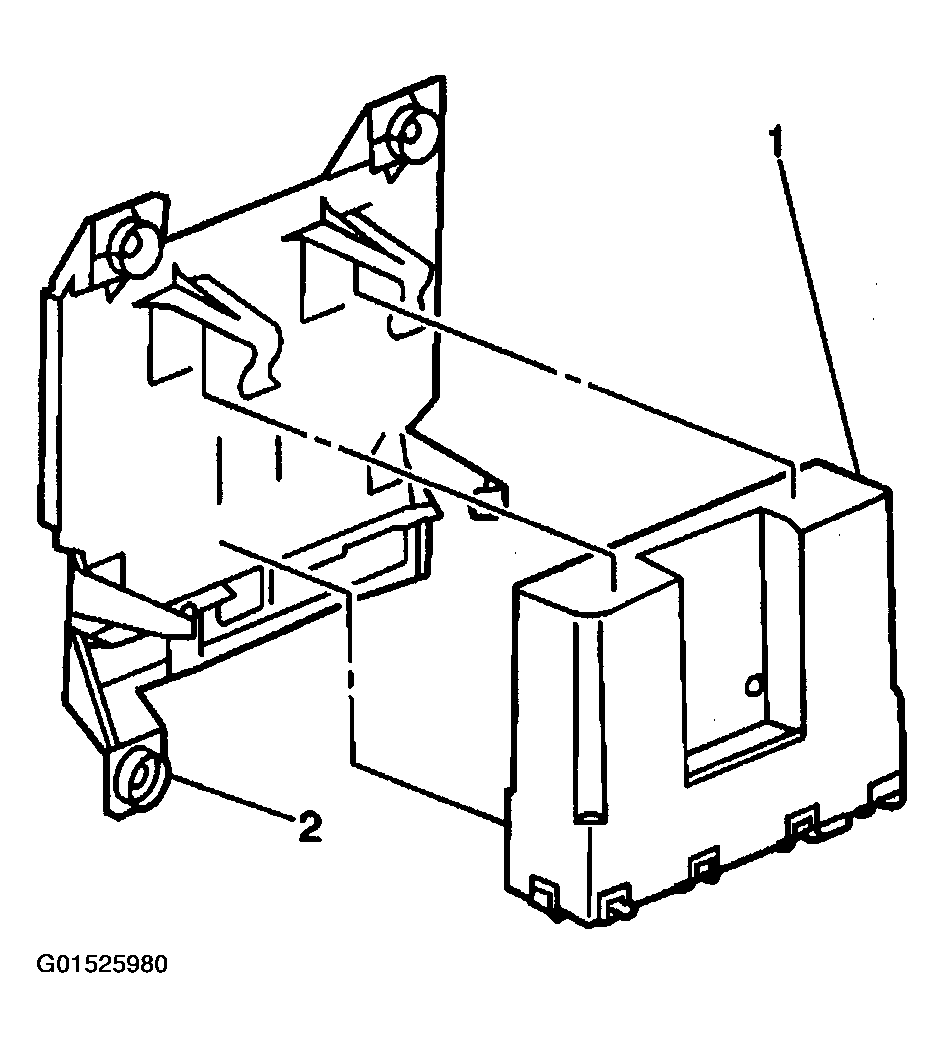

    Fig 1: Installing Instrument Panel Module
    G01525980Courtesy of GENERAL MOTORS CORP.
  3. Close the instrument panel compartment.
  4. Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE (TOP POST) in Engine Electrical.
