Keyless Entry Connector End Views
Keyless Entry Connector End Views

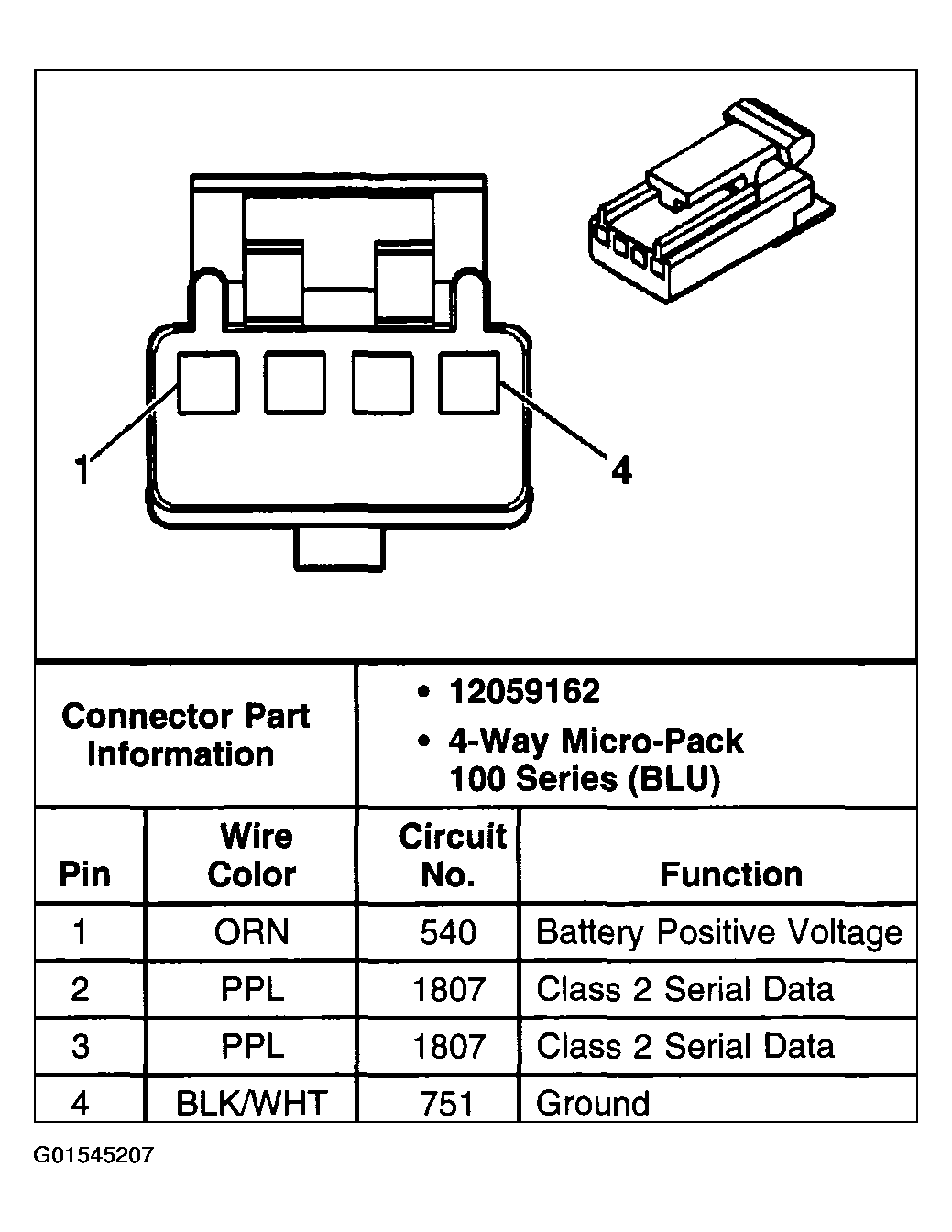

Fig 1: Keyless Entry Connector End Views - Remote Control Door Lock Receiver (RCDLR)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
