Installation Procedure

WARNING: This page is about a different car, the 2004 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

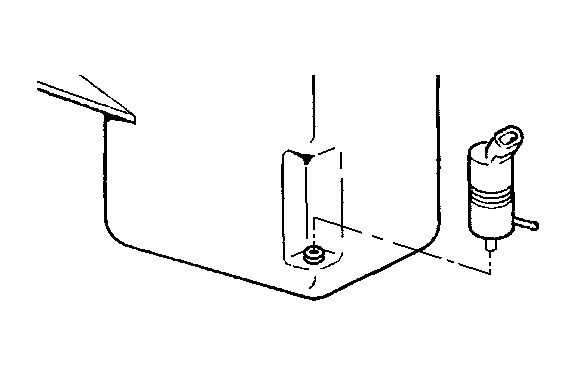

    Fig 1: View of Washer Pump & Water Solvent Container
    GM497487Courtesy of GENERAL MOTORS CORP.
  1. Install the washer pump in the washer solvent container.

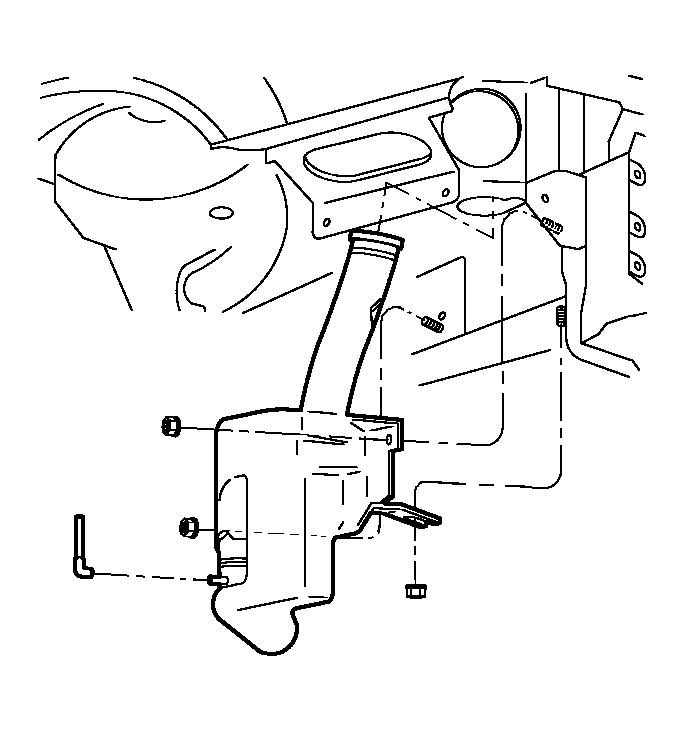

    2. Fig 2: View of Washer Solvent Container
    GM497486Courtesy of GENERAL MOTORS CORP.
  2. Install the washer solvent container on the vehicle.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the 3 nuts.

    Tighten:  Tighten the 3 nuts to 6 N.m (53 lb in).

    4. Fig 3: View of Washer Pump
    GM497483Courtesy of GENERAL MOTORS CORP.
  4. Connect the electrical connector to the washer solvent level sensor.
  5. Connect the electrical connector to the washer pump.
  6. Connect the washer hose to the washer pump.
  7. Install the right front fascia extension. Refer to Fascia Extension Replacement - Front in Bumpers.
