Installation Procedure

WARNING: This page is about a different car, the 2004 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

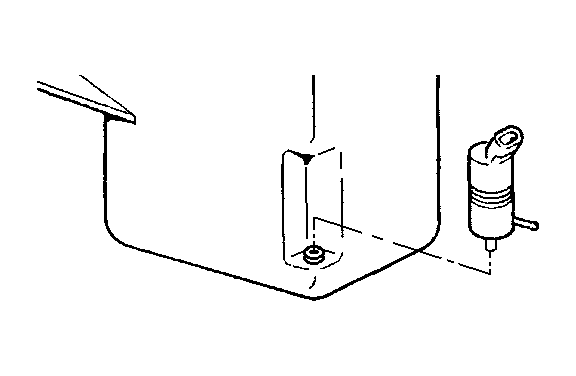

    Fig 1: View of Washer Pump from Washer Solvent Container
    GM497491Courtesy of GENERAL MOTORS CORP.
  1. Install the washer pump in the washer solvent container.

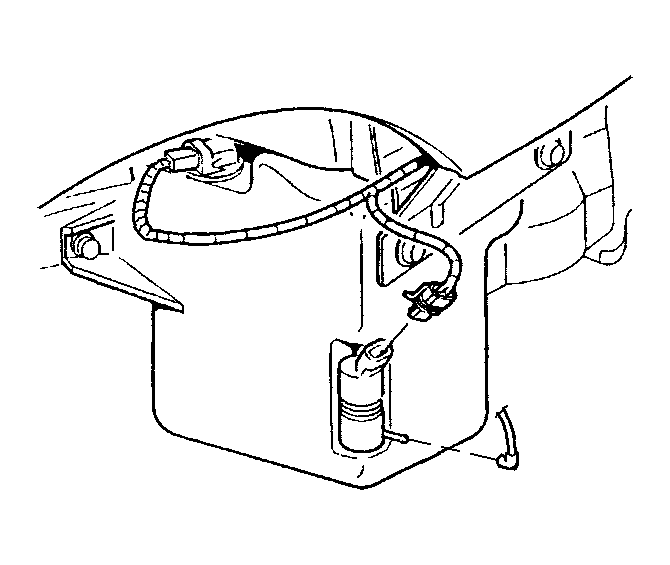

    2. Fig 2: View of Washer Solvent Container
    GM497490Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the washer pump.
  3. Connect the washer hose to the washer pump.
  4. Install the right front fascia extension. Refer to Fascia Extension Replacement - Front in Bumpers.
  5. Fill the washer solvent container.
