Installation Procedure

WARNING: This page is about a different car, the 2004 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

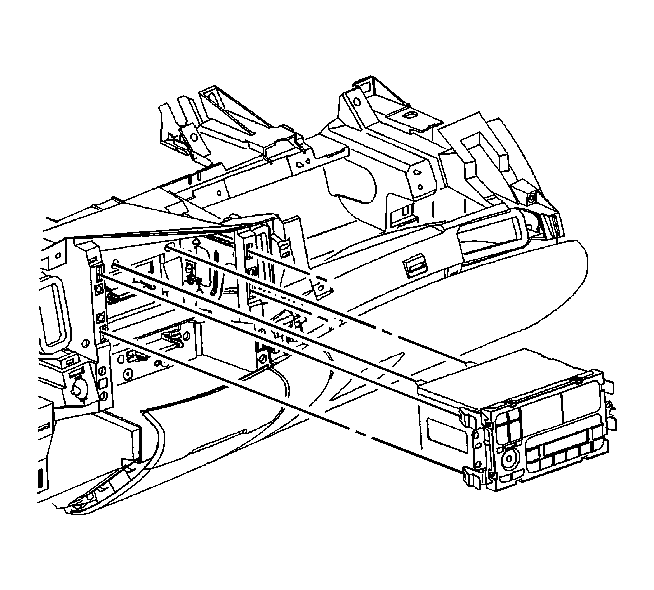

    Fig 1: View of Radio
    GM428734Courtesy of GENERAL MOTORS CORP.
  1. Connect the antenna coaxial cable to the radio.
  2. Install the radio into the instrument panel.
  3. Ensure that the spring clips are fully engaged.
  4. Install the instrument panel cluster trim plate. Refer to Trim Plate Bezel Replacement - Instrument Panel (I/P) Cluster .
