Installation Procedure

WARNING: This page is about a different car, the 2004 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

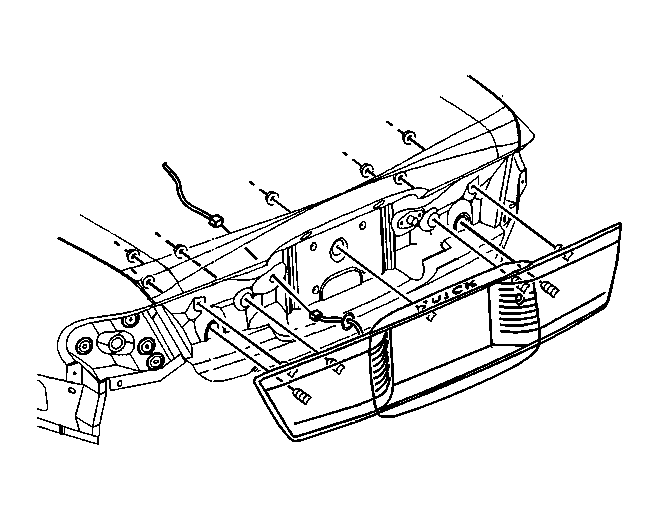

    Fig 1: View of Tail/Backup Lamp
    GM506449Courtesy of GENERAL MOTORS CORP.
  1. Install the license plate bulb socket into the lamp housing.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the fastener in order to secure the license plate lamp to the tail/backup lamp assembly.

    Tighten:  Tighten the license plate lamp fastener to 2 N.m (18 lb in).

  3. While supporting the tail/back up lamp assembly, install the tail/back up lamp harness grommet to the rear compartment lid and install the tail/back up lamp.
  4. Install the tail/back up lamp fasteners to the tail/back up lamp studs.

    Tighten:  Tighten the tail/back up lamp fasteners to 6 N.m (53 lb in).

  5. Connect the tail/back up lamp electrical connector.
  6. Connect the tail/back up lamp harness connector and clip the connector to the metal edge of the rear compartment lid.
