Installation Procedure

WARNING: This page is about a different car, the 2004 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

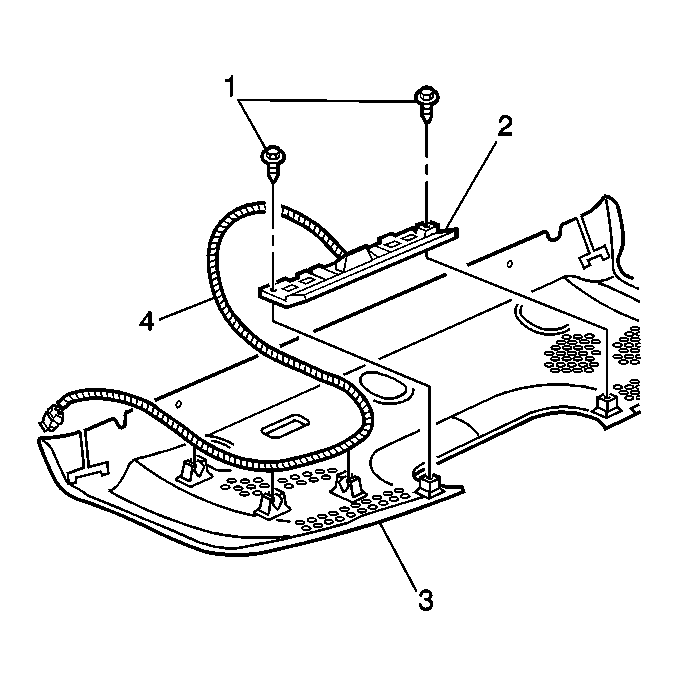

Fig 1: View of High Mounted Stop Lamp Wiring, Rear Shelf Panel, Fasteners, & High Mounted Stop Lamp

Courtesy of GENERAL MOTORS CORP.

Install the high mount stop lamp (2) to the rear shelf trim panel (3).
Install the high mounted stop lamp wiring (4) to the rear shelf panel (3).

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the fasteners that secure the high mount stop lamp (2) to the rear shelf trim panel (3).
Tighten: Tighten the fasteners to 2 N.m (18 lb in).
Install the rear shelf trim panel (3). Refer to Trim Panel Replacement - Rear Window Shelf in Interior Trim.
