Installation Procedure

WARNING: This page is about a different car, the 2004 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

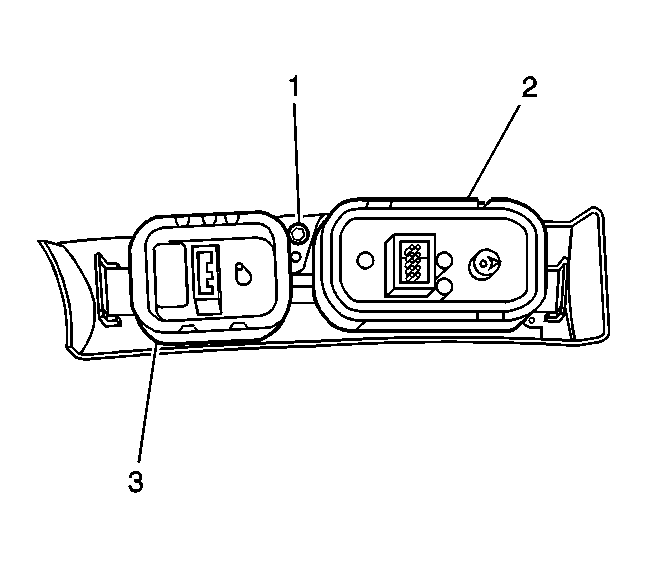

Fig 1: View of Fastener & Headlamp Switch

Courtesy of GENERAL MOTORS CORP.

Install the headlamp switch (2) to the IP trim plate.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the fastener (1).
Tighten: Tighten the fastener to 2 N.m (18 lb in).

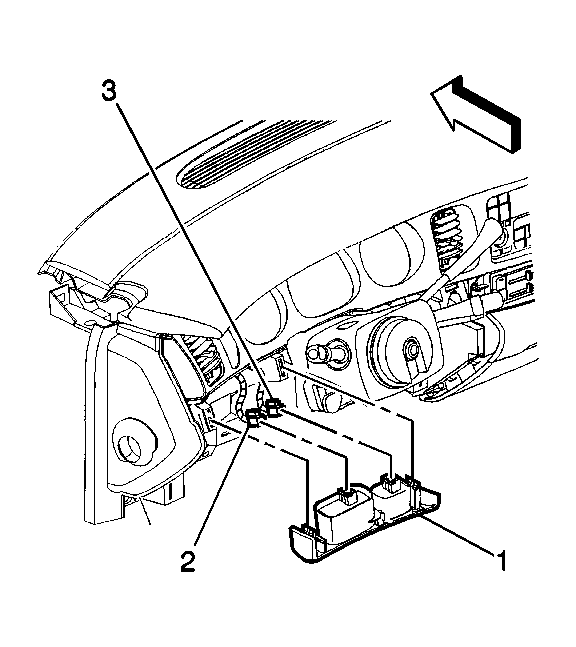

Fig 2: View of Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Connect the electrical connectors (2, 3).
Install the IP trim plate. Refer to Trim Plate Replacement - Instrument Panel (I/P) Accessory Left in Instrument Panel, Gages and Console.
