Installation Procedure

WARNING: This page is about a different car, the 2004 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

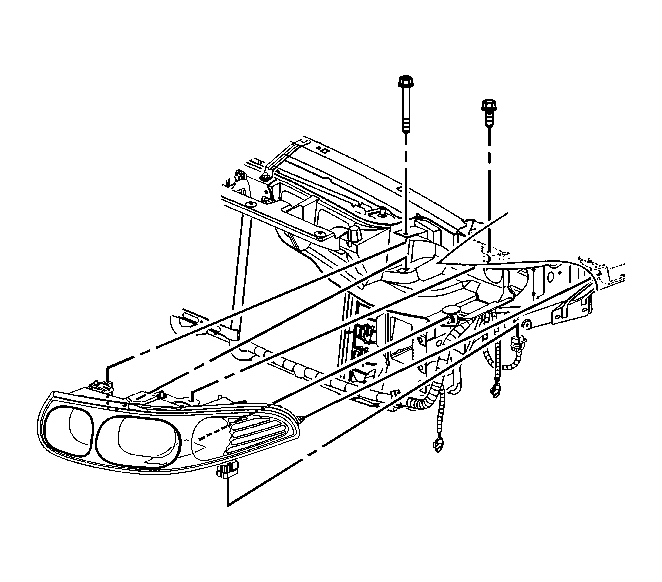

Fig 1: View of Headlamp & Fasteners

Courtesy of GENERAL MOTORS CORP.

Install the headlamp to the vehicle.
Connect the electrical connectors.
Position the headlamp in order to align the locator pins with the headlamp mounting bracket.
Press the headlamp rearward in order to engage the ball stud with the ball stud socket.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the headlamp fasteners.
Tighten: Tighten the headlamp mounting fasteners to 9 N.m (80 lb in).
