Installation Procedure

WARNING: This page is about a different car, the 2004 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

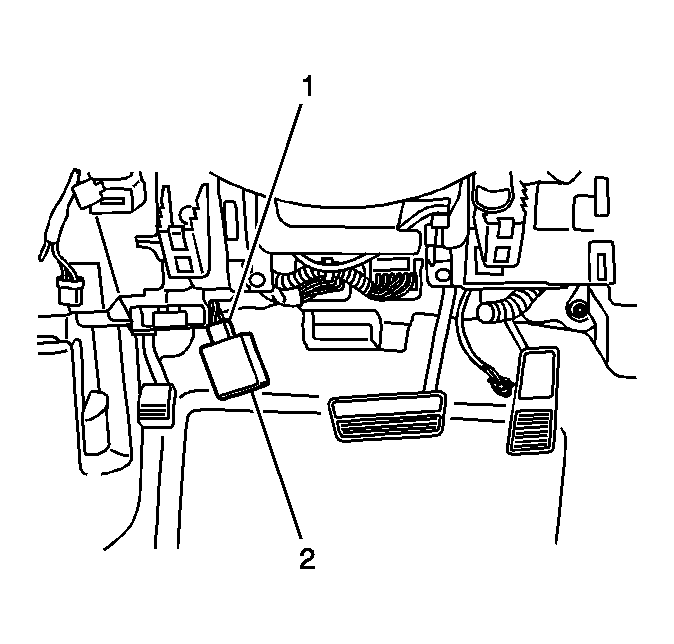

    Fig 1: View of Signal/Hazard Warning Flasher & Electrical Connector
    GM798736Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector (1) the turn signal/hazard warning flasher (2).
  2. Install the turn signal/hazard warning flasher (2) to the IP carrier.
  3. Install the left IP closeout/insulator panel. Refer to Closeout/Insulator Panel Replacement - Left in Instrument Panel, Gages and Console.
