Installation Procedure

WARNING: This page is about a different car, the 2004 Buick LeSabre. However, it is still accessible from the selected car via links, so may be relevant.

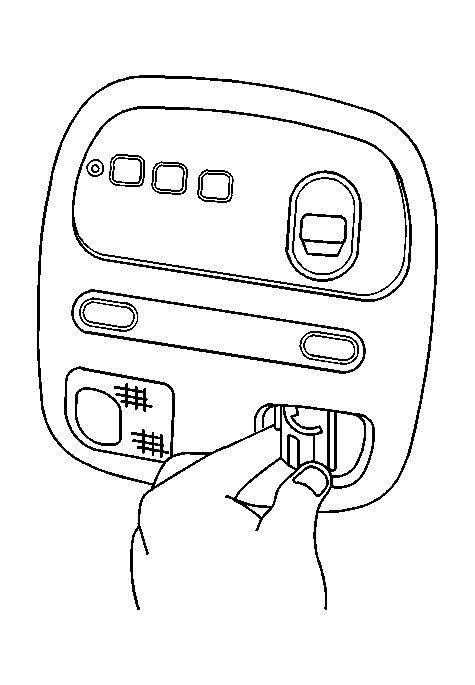

    Fig 1: Installing Bulb In Overhead Console
    GM640495Courtesy of GENERAL MOTORS CORP.
  1. Install the bulb into the overhead console.
  2. Insert one side of the metal shield into the overhead console.
  3. Gently squeeze the shield together just enough so the retainer tabs fit into the notches in the lamp cavity.
  4. Snap the lamp lens into the overhead console.
