Diagnostic Procedures

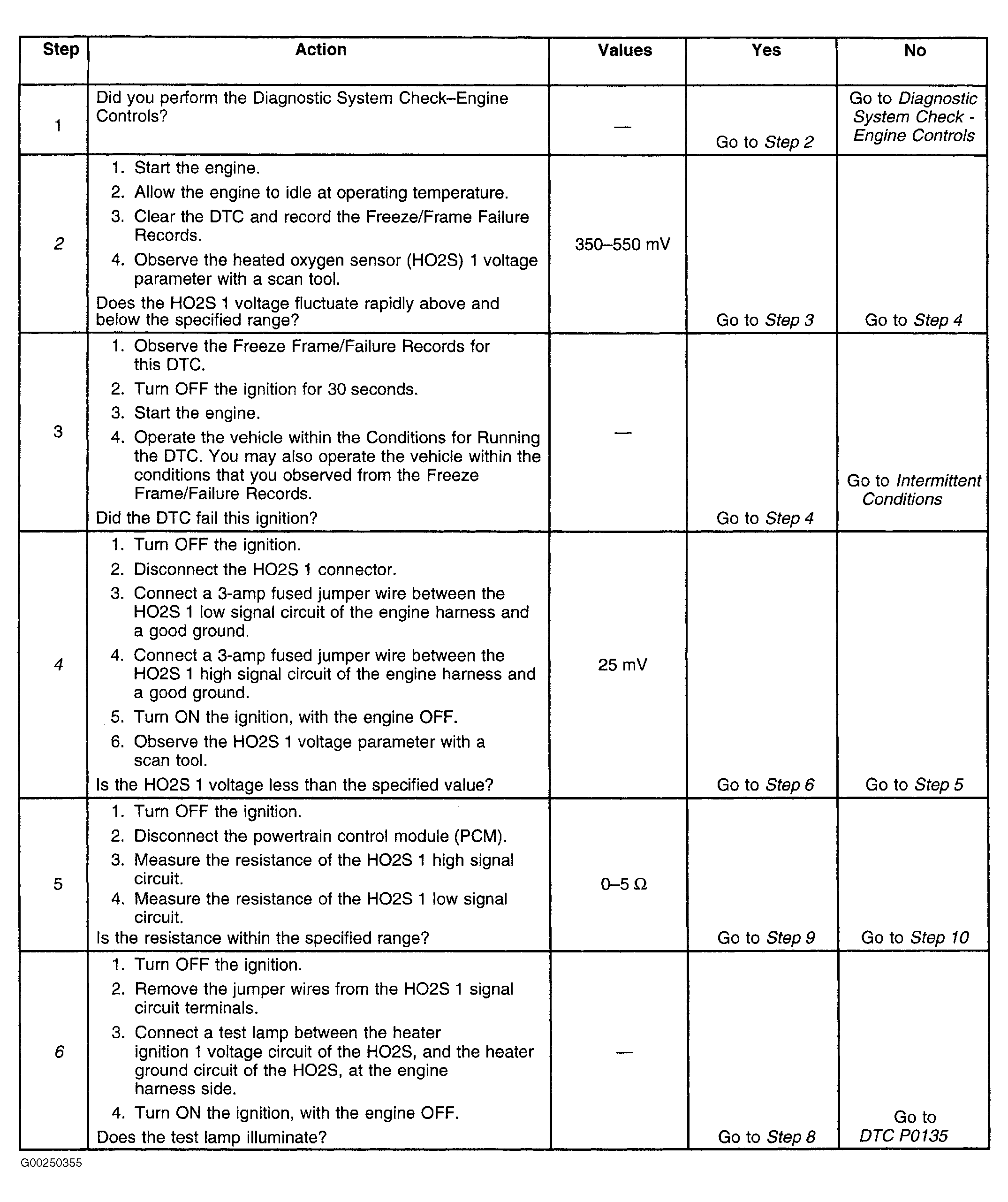

Fig 1: DTC P0134: HO2S Circuit Insufficient Activity - Sensor 1 (Steps 1-6)
G00250355Courtesy of GENERAL MOTORS CORP.

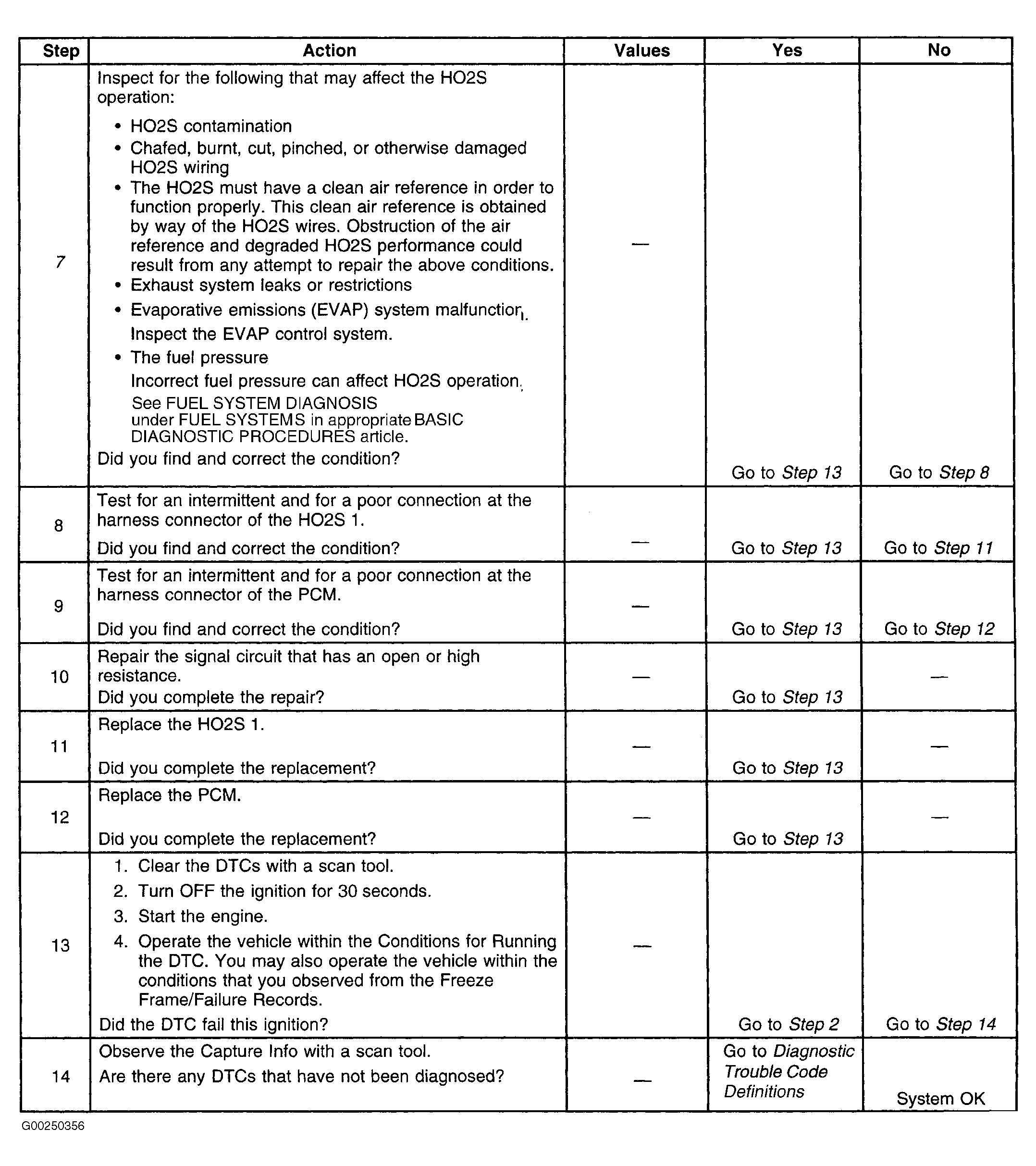

Fig 2: DTC P0134: HO2S Circuit Insufficient Activity - Sensor 1 (Steps 7-14)
G00250356Courtesy of GENERAL MOTORS CORP.
