Power Seat Systems Connector End View - Memory Seat Module (MSM) - Driver C1

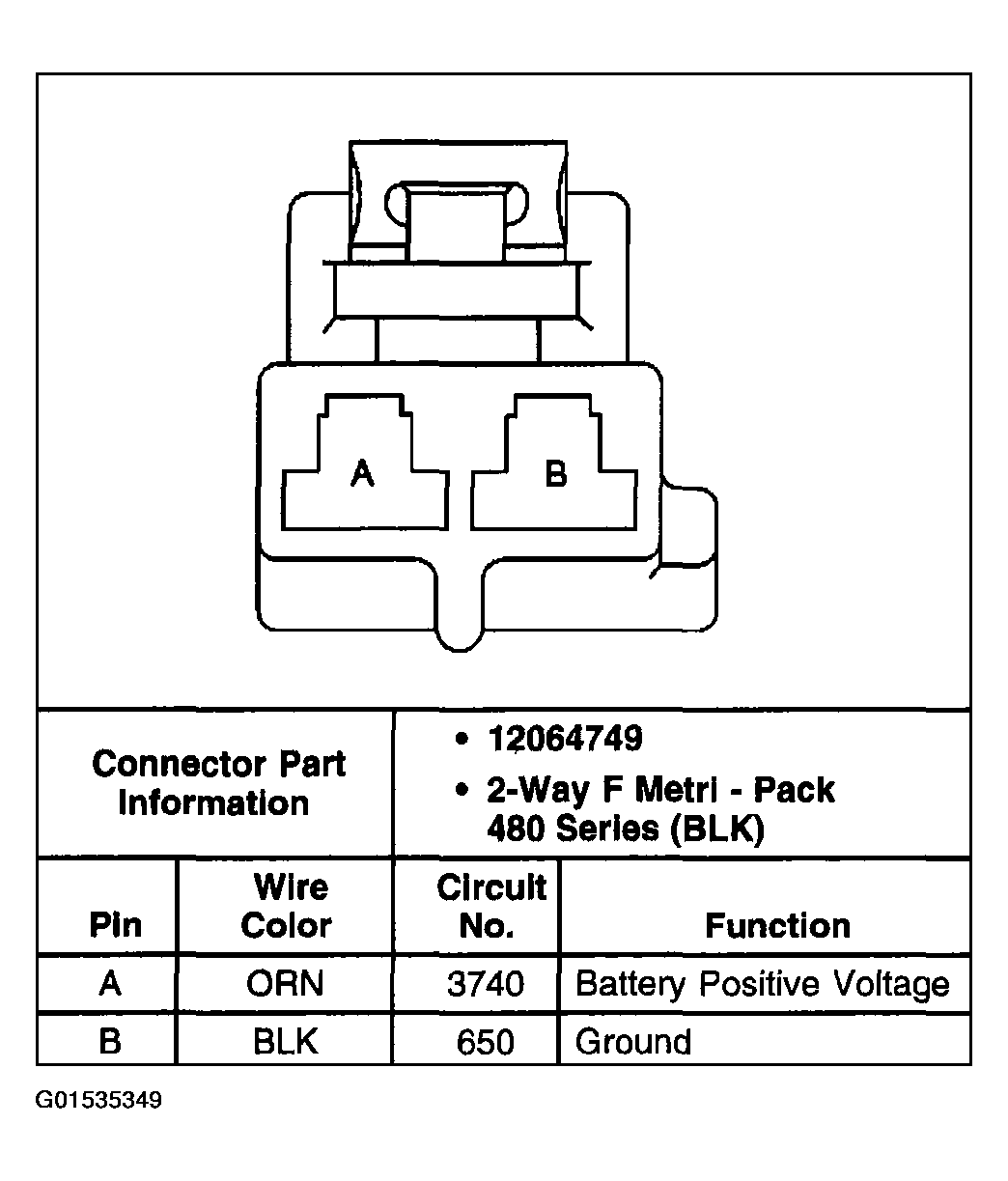

Fig 1: Power Seat Systems - Memory Seat Module (MSM) - Driver C1 (A45)
G01535349Courtesy of GENERAL MOTORS CORP.
