Power Seat Systems Connector End View - Heated Seat Module - Front Passenger C2

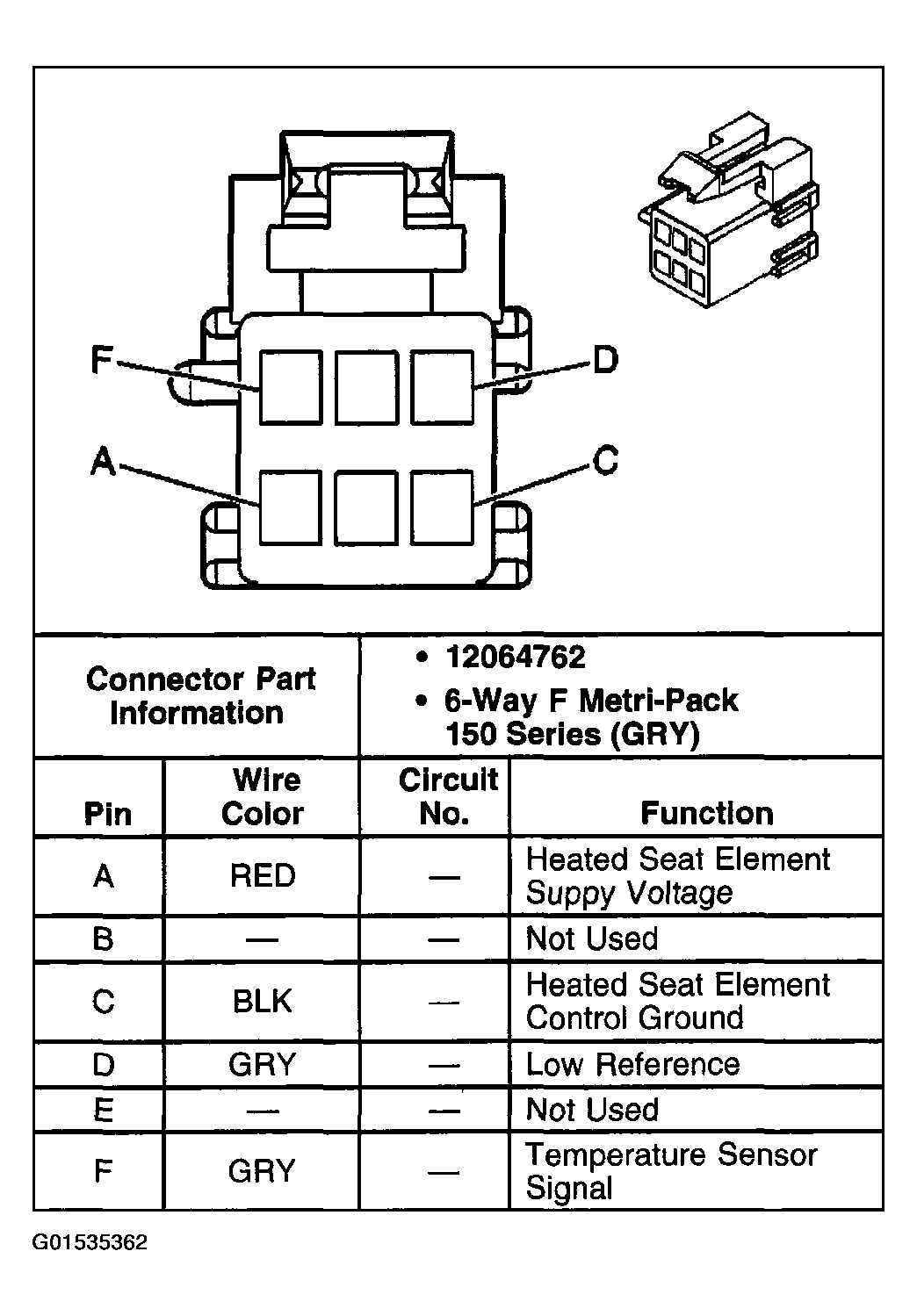

Fig 1: Power Seat Systems - Heated Seat Module - Front Passenger C2 (w/AG2, A81, KA1)

G01535362

Courtesy of GENERAL MOTORS CORP.
