Power Seat Systems Connector End View - Heated Seat Module - Driver C2

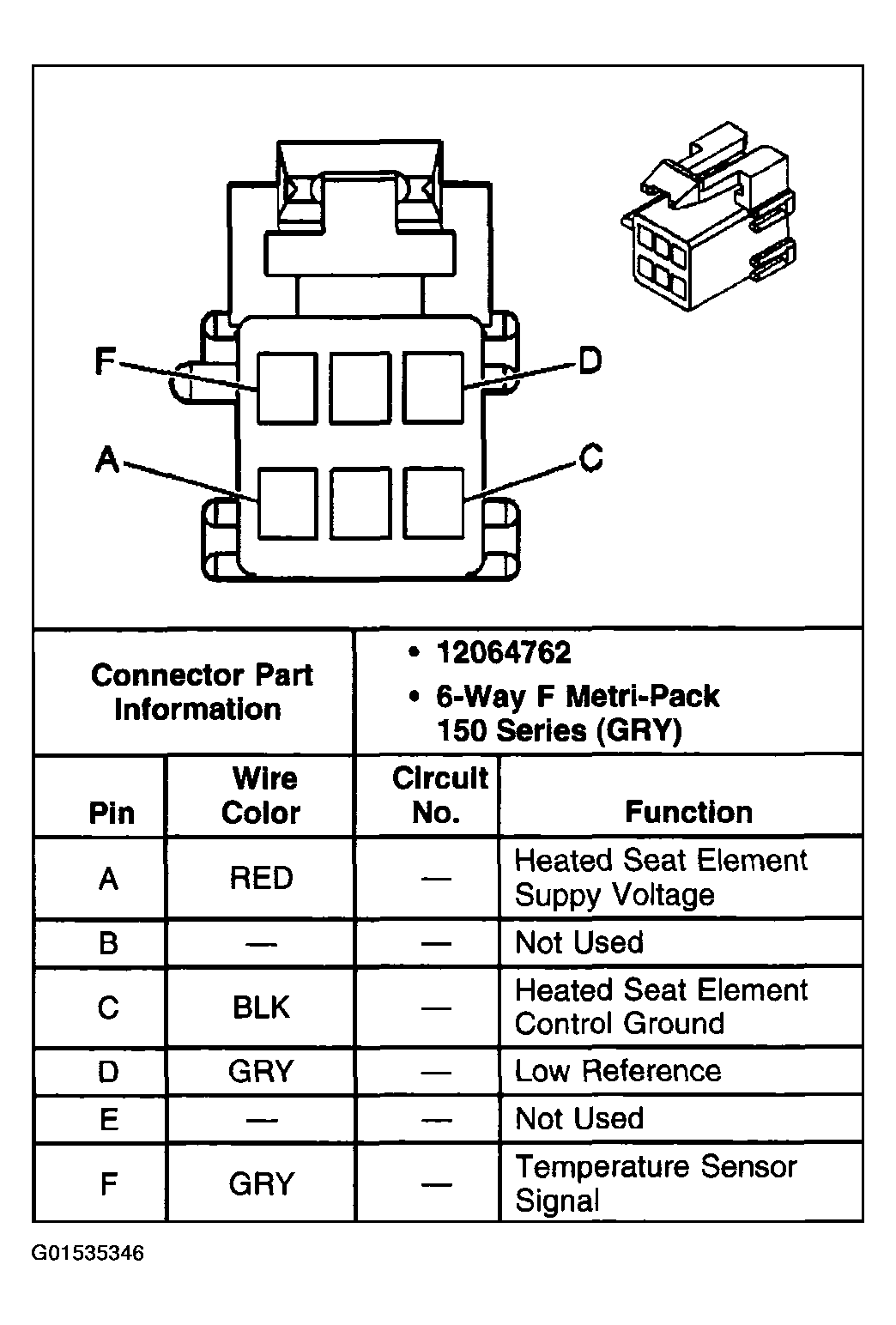

Fig 1: Power Seat Systems - Heated Seat Module - Driver C2 (w/AG1, A80, KA1)

G01535346

Courtesy of GENERAL MOTORS CORP.
