Power Seat Systems Connector End View - Front Passenger

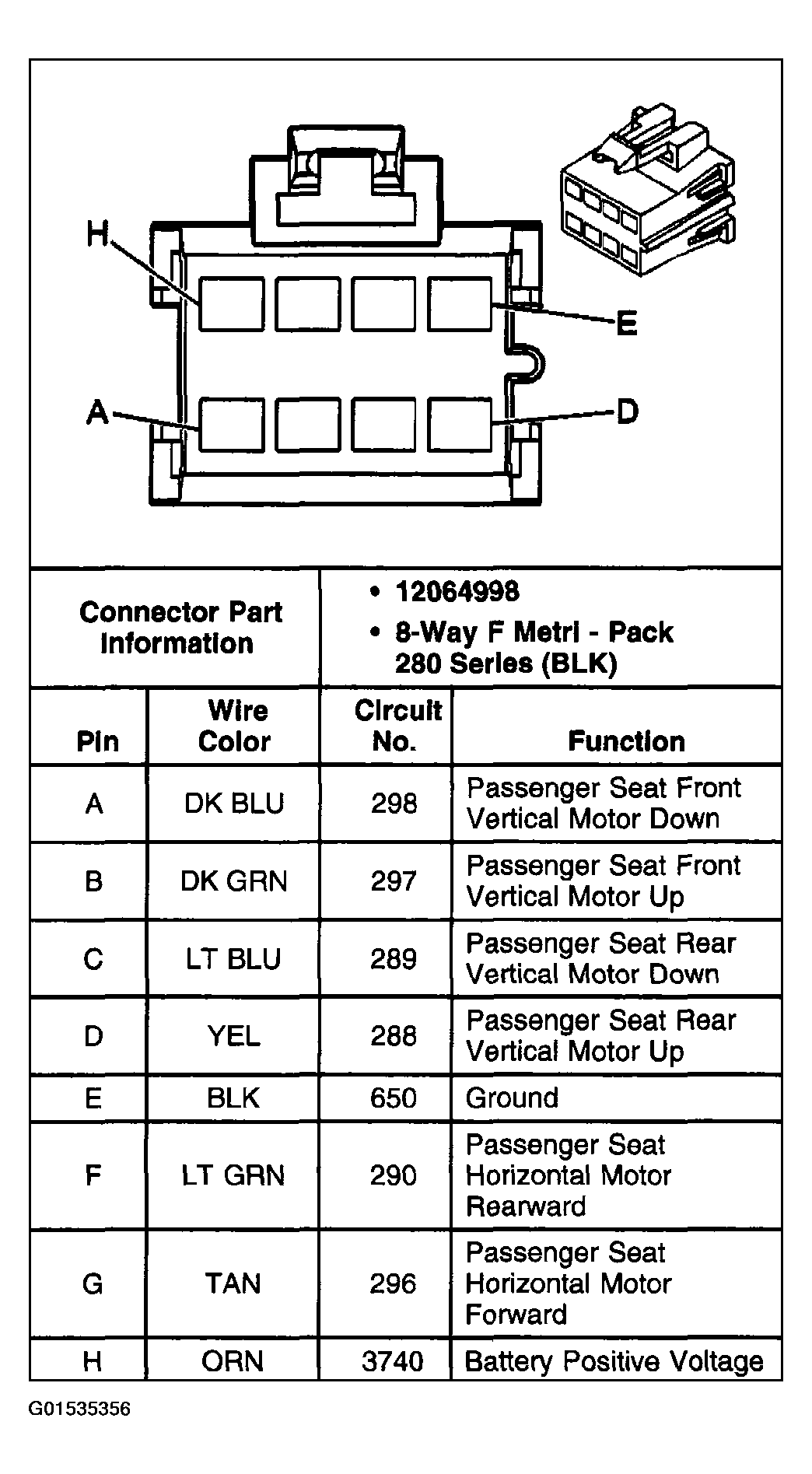

Fig 1: Power Seat Systems - Front Passenger (AG2)

G01535356

Courtesy of GENERAL MOTORS CORP.
