IP Compartment Lamp & Switch Connector End View

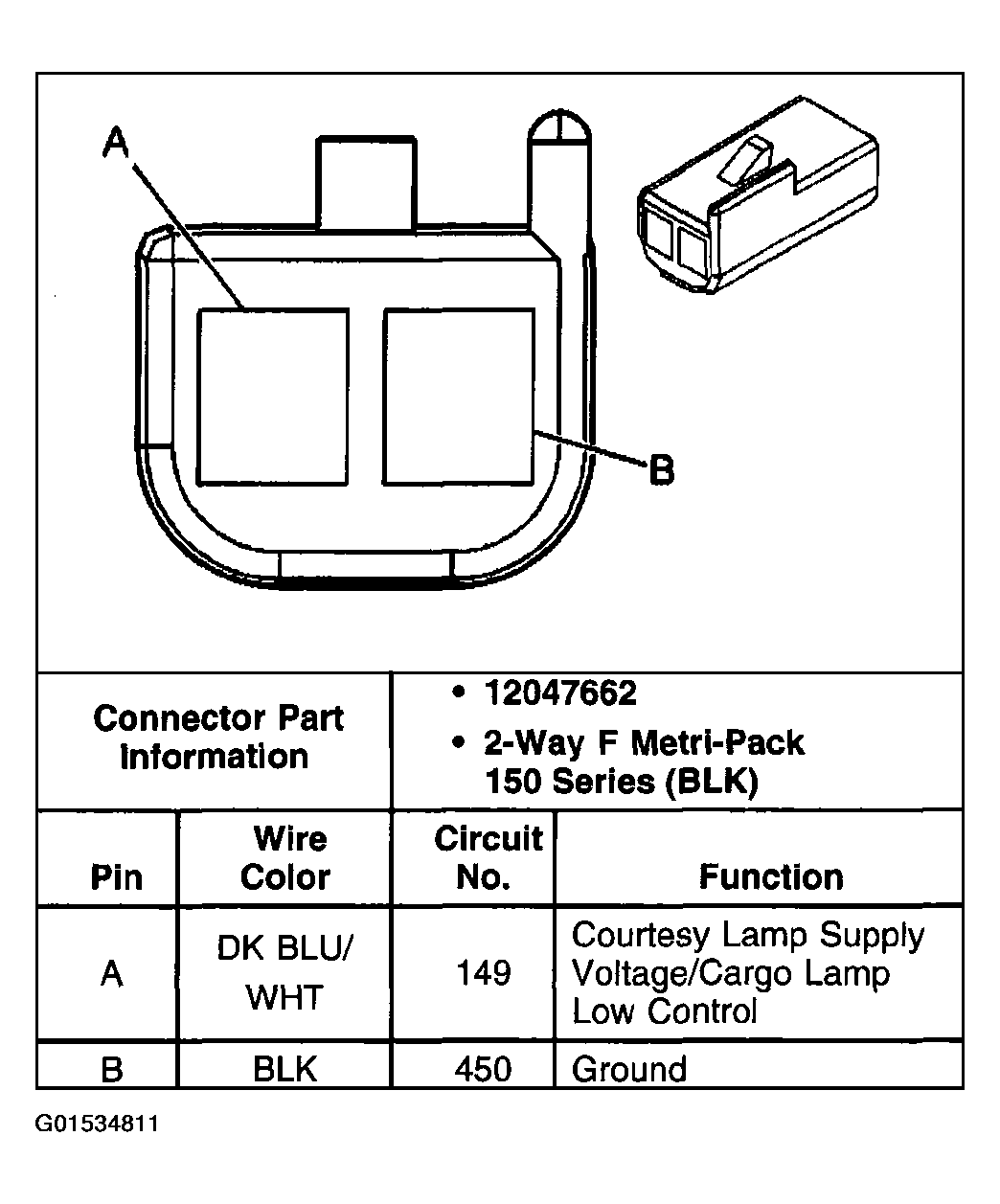

Fig 1: IP Compartment Lamp & Switch

G01534811

Courtesy of GENERAL MOTORS CORP.
