Courtesy/Reading Lamp Connector End View - Right

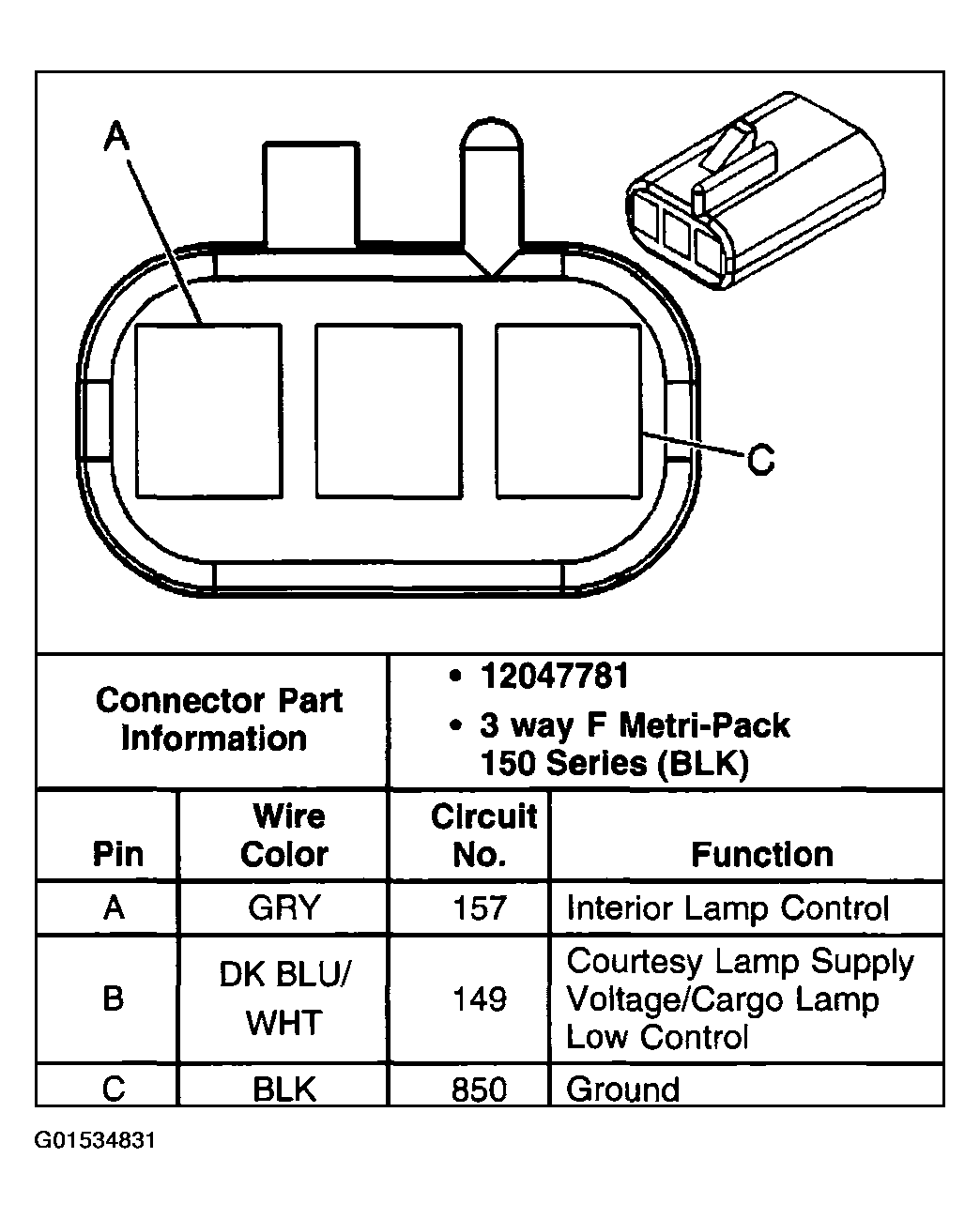

Fig 1: Courtesy/Reading Lamp - Right (+C96)

G01534831

Courtesy of GENERAL MOTORS CORP.
