Home >> Buick >> 2003 >> LeSabre Custom, 4T65E/MN3 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Courtesy Lamp Connector Connector End View

Courtesy Lamp Connector Connector End View

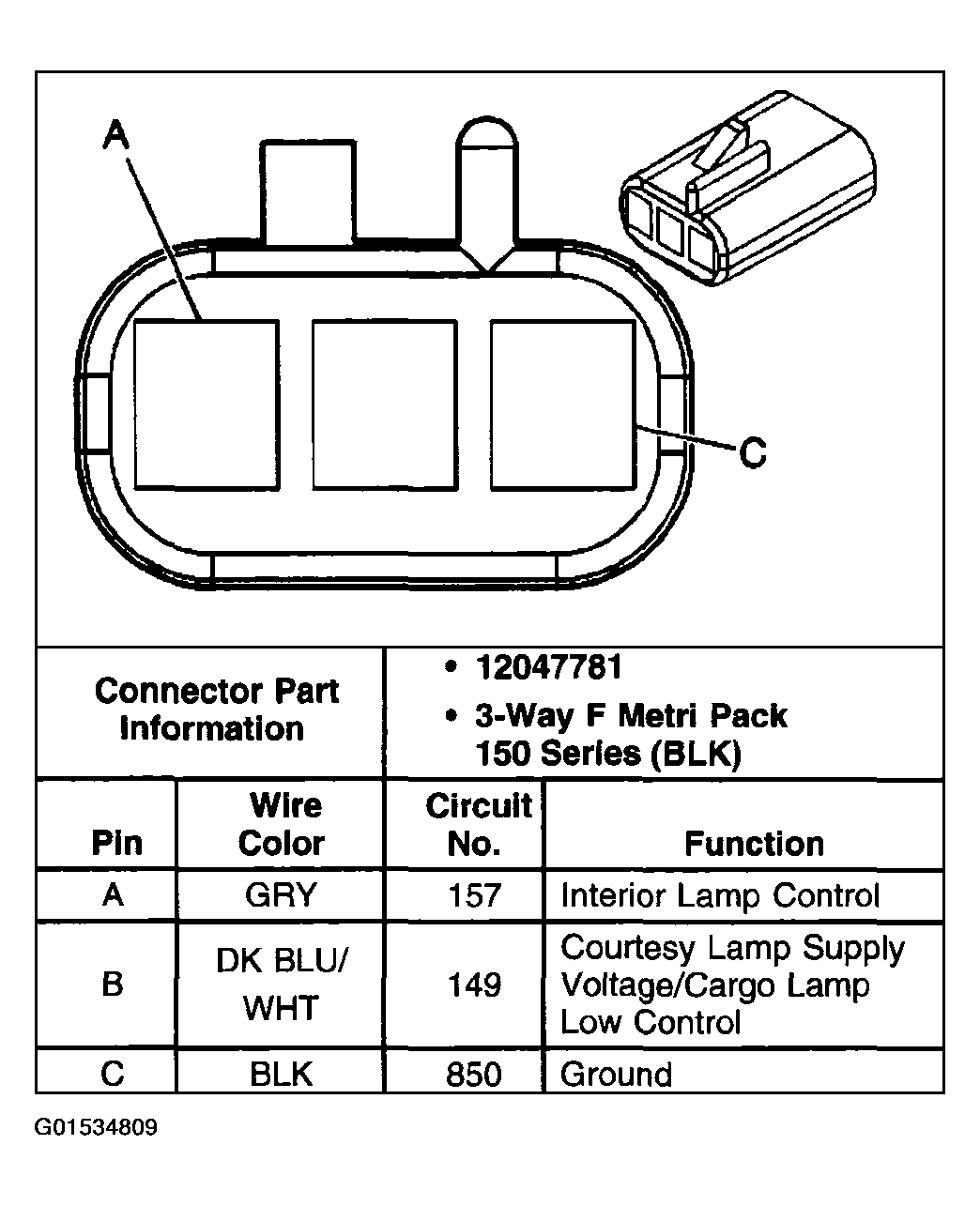

Fig 1: Courtesy Lamp Connector (W/C96)

G01534809

Courtesy of GENERAL MOTORS CORP.
