Blower Motor Connector End View
Blower Motor Connector End View

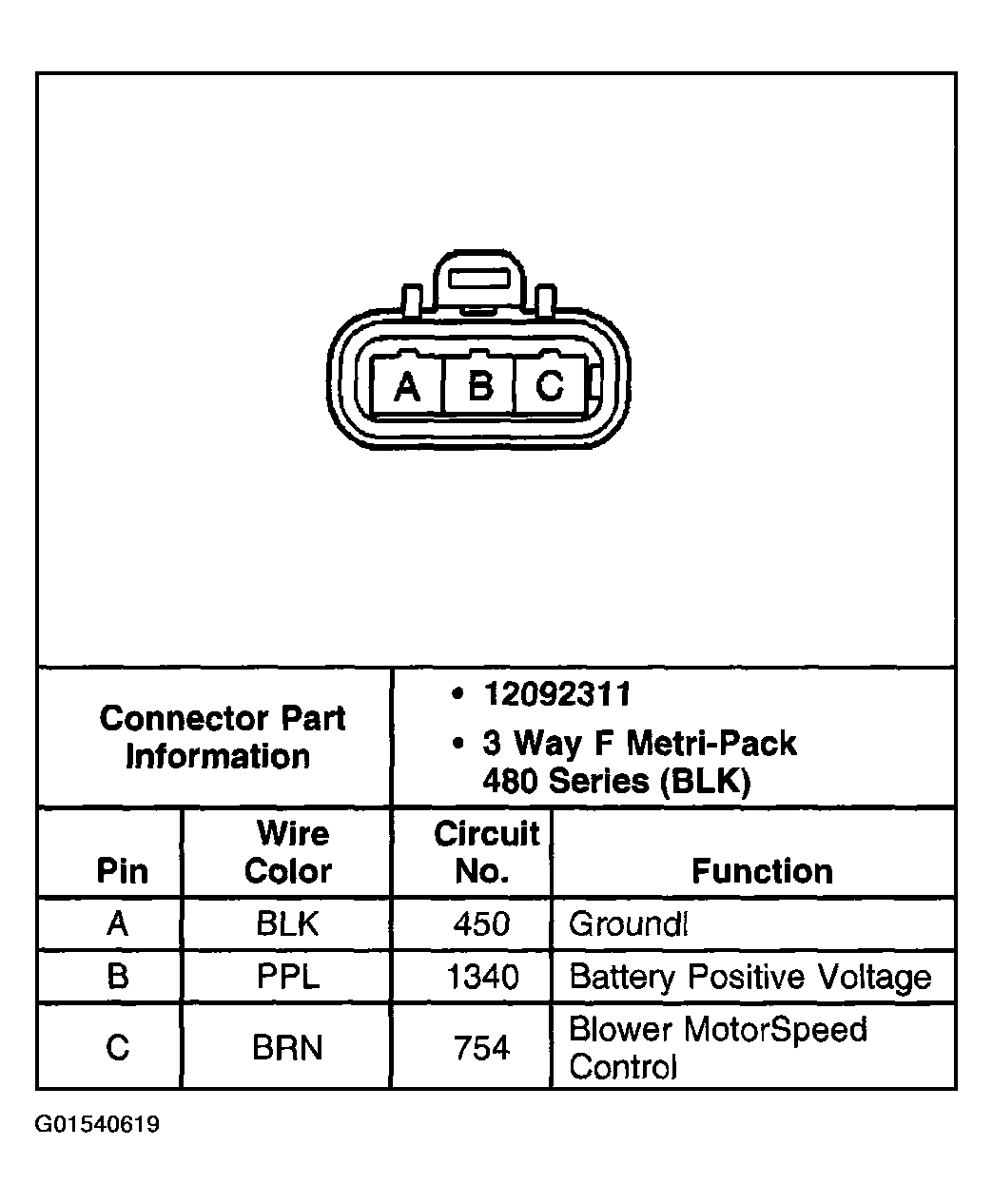

Fig 1: Blower Motor
Courtesy of GENERAL MOTORS CORP.

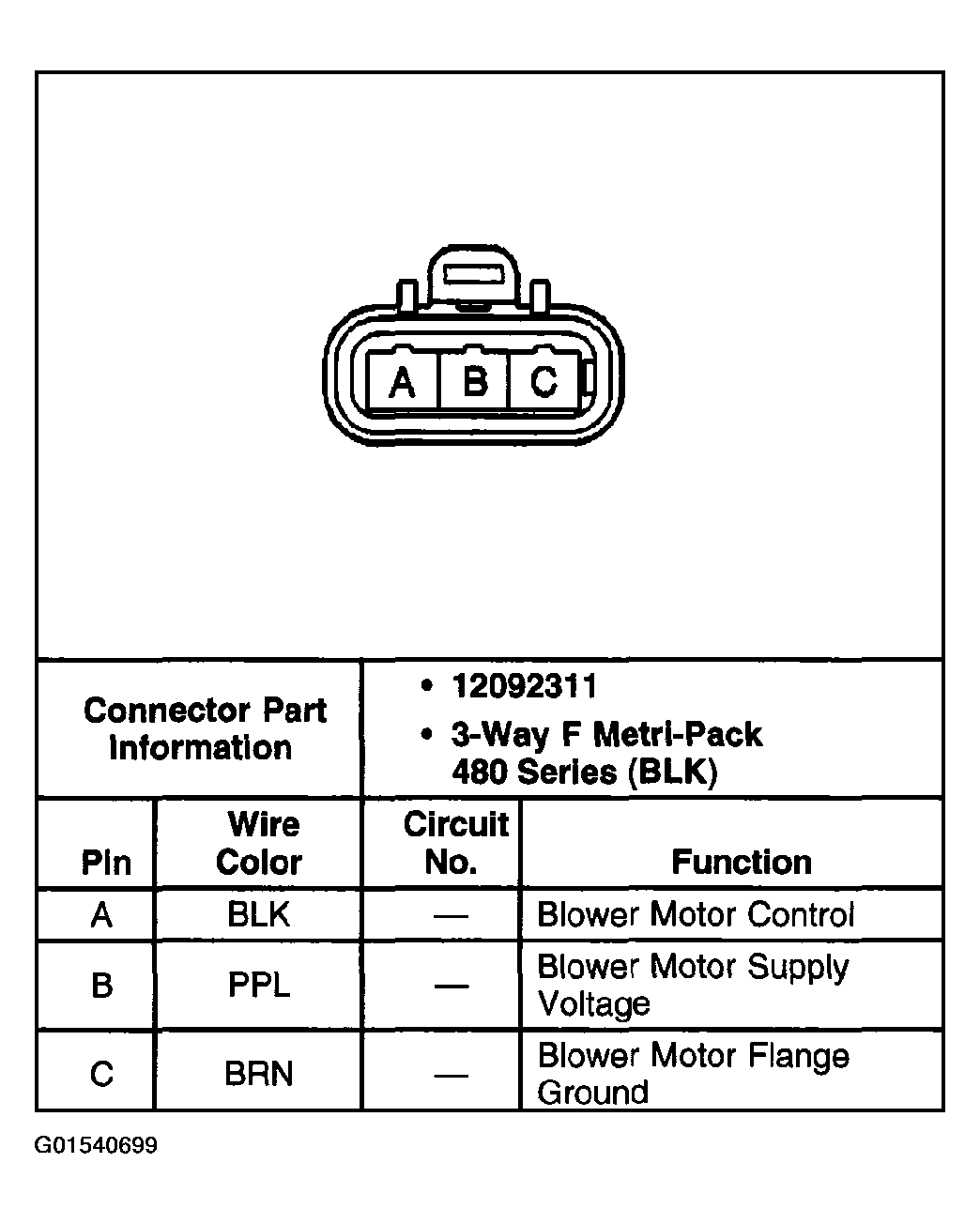

Fig 1: Blower Motor
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
