Home >> Buick >> 2003 >> LeSabre Custom, 4T65E/MN3 >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Backup Lamp Connector End View - Left

Backup Lamp Connector End View - Left

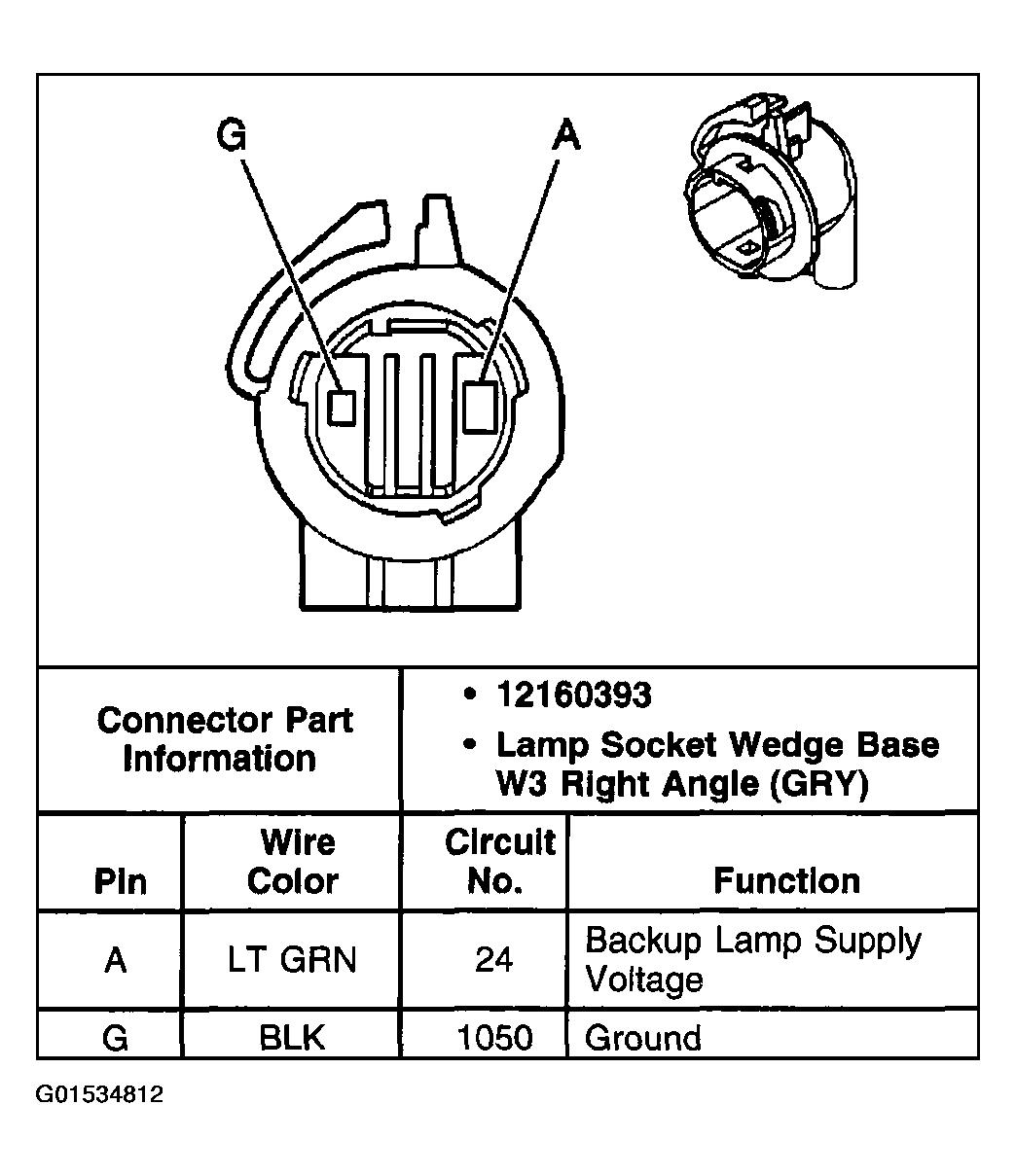

Fig 1: Backup Lamp - Left

G01534812

Courtesy of GENERAL MOTORS CORP.
