Air Temperature Sensor Connector End View - Upper Right

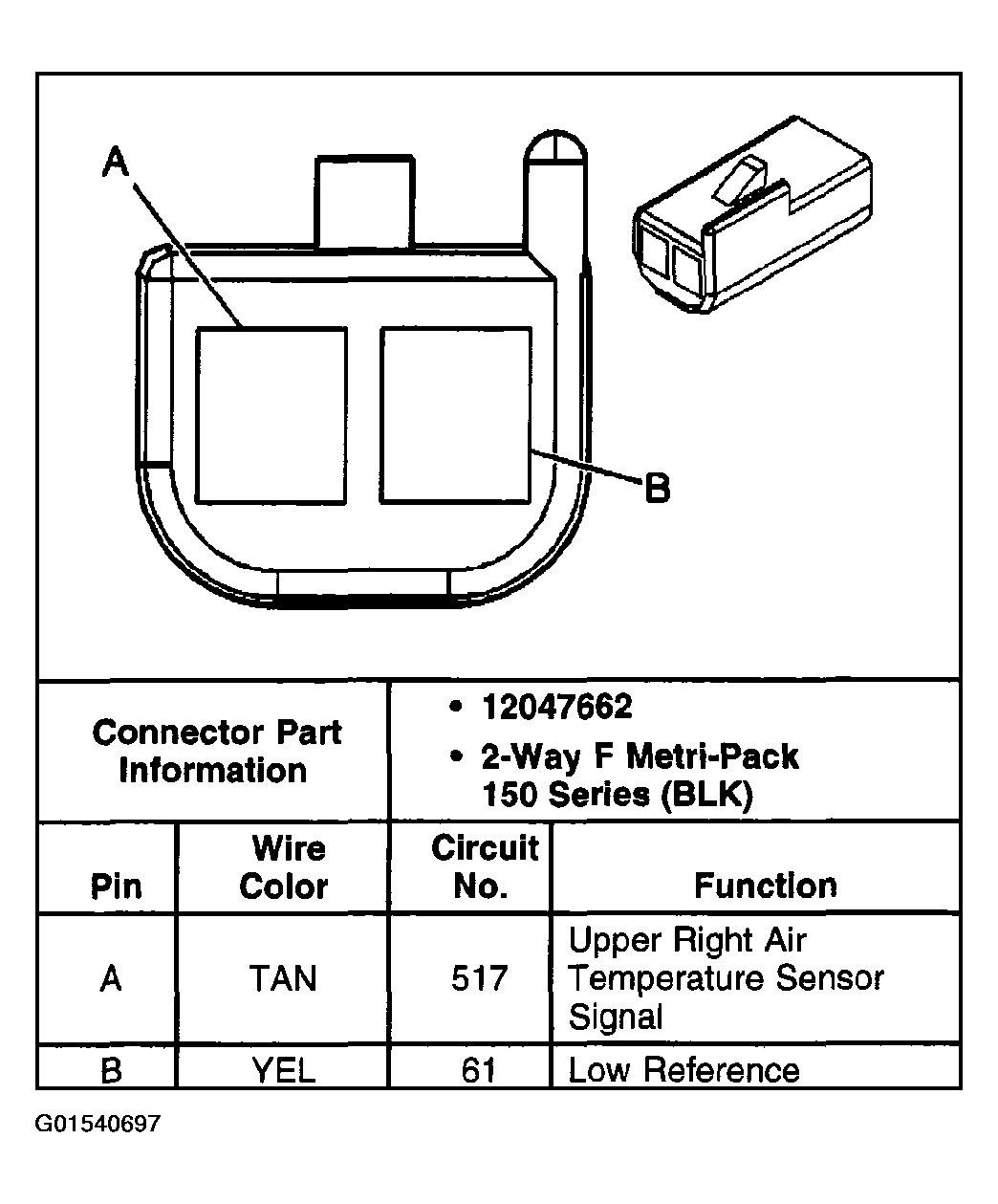

Fig 1: Air Temperature Sensor - Upper Right

G01540697

Courtesy of GENERAL MOTORS CORP.
