Air Temperature Sensor Connector End View - Lower Right

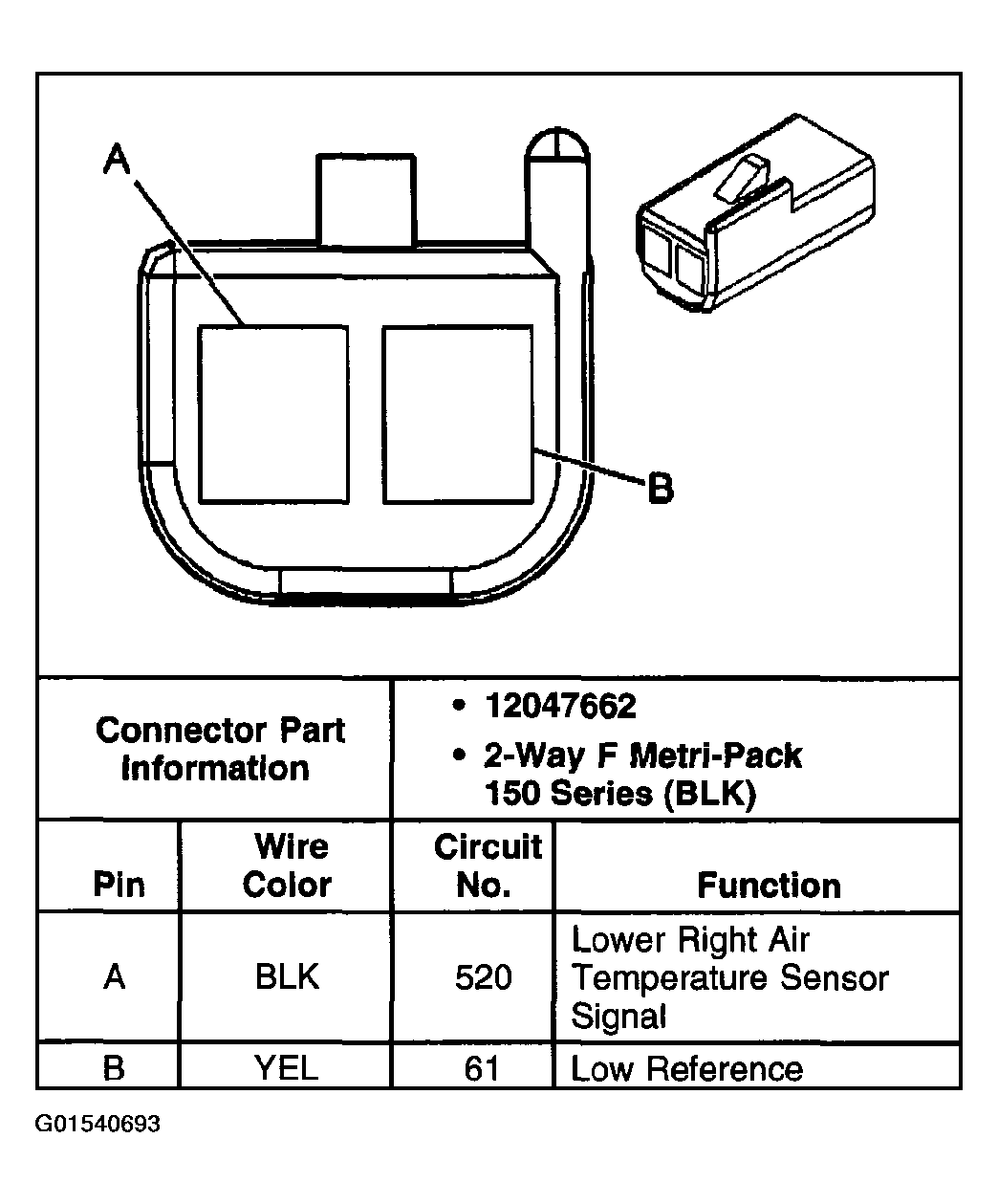

Fig 1: Air Temperature Sensor - Lower Right

G01540693

Courtesy of GENERAL MOTORS CORP.
