Air Temperature Sensor Connector End View - Ambient

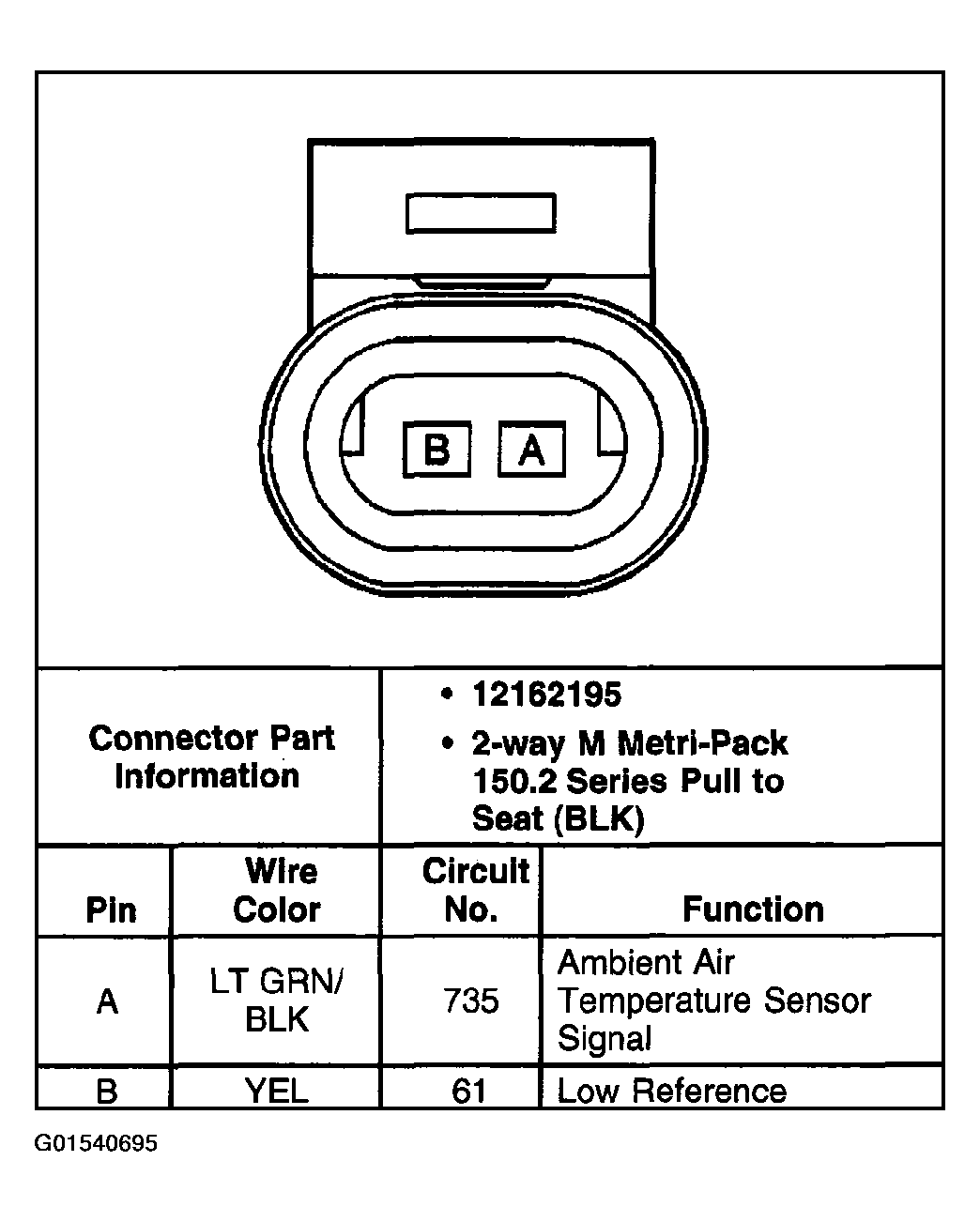

Fig 1: Air Temperature Sensor - Ambient

G01540695

Courtesy of GENERAL MOTORS CORP.
