Removal Procedure

  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .
  2. Disconnect the battery positive cable (1) from the battery.
    Fig 1: Disconnecting Battery Positive Cable From Battery
    G01542165Courtesy of GENERAL MOTORS CORP.
  3. Remove the battery vent tube (1) from the battery.
    Fig 2: Removing Battery Vent Tube From Battery
    G01542166Courtesy of GENERAL MOTORS CORP.
  4. Remove the battery retainer bolt and battery retainer.
  5. Remove the battery.

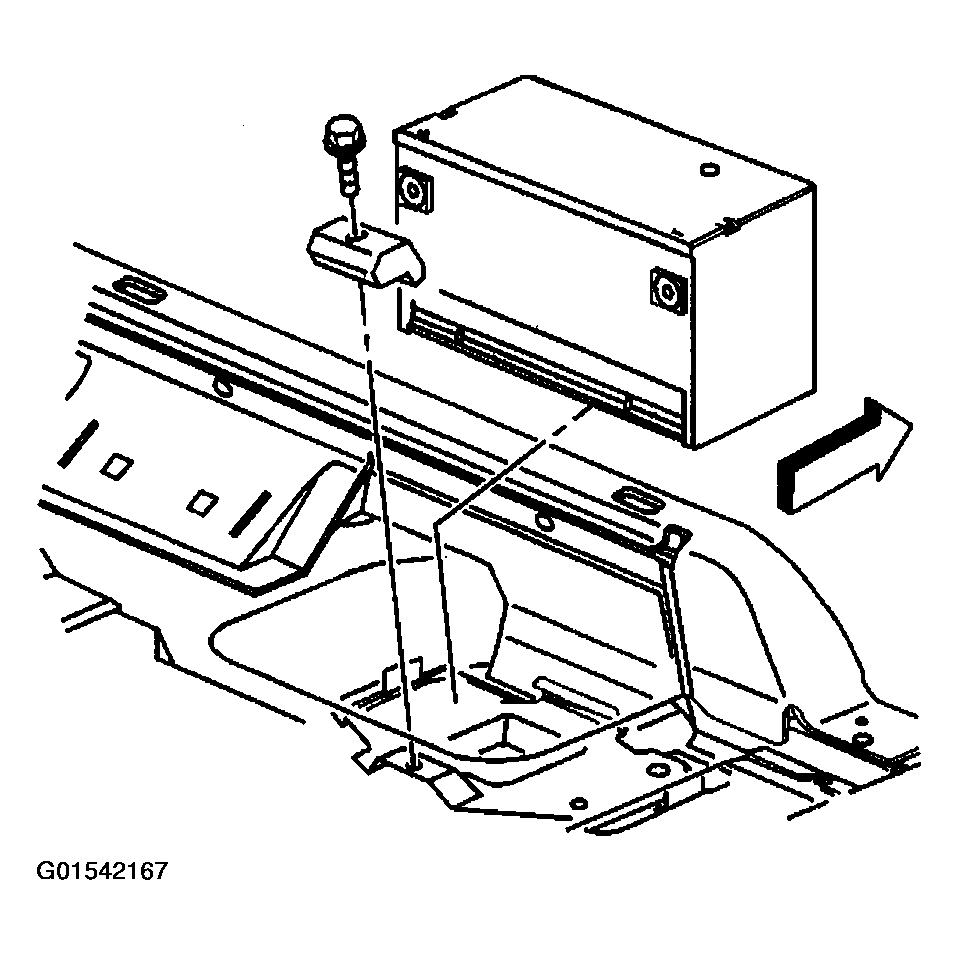

    Fig 3: Removing Battery
    G01542167Courtesy of GENERAL MOTORS CORP.
