Installation Procedure

NOTE: Refer to FASTENER NOTICE .

Important:  When installing the battery negative cable, be sure that the cable eyelet is installed with the flat side down. Keep the crimped side facing upward.

  1. Connect the body end of the battery negative cable to the floor pan.

    Tighten

    Tighten the battery negative cable to floor pan bolt to 36 N.m (27 lb ft).

  2. Connect the body harness connector to the body harness.
  3. Connect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE  .

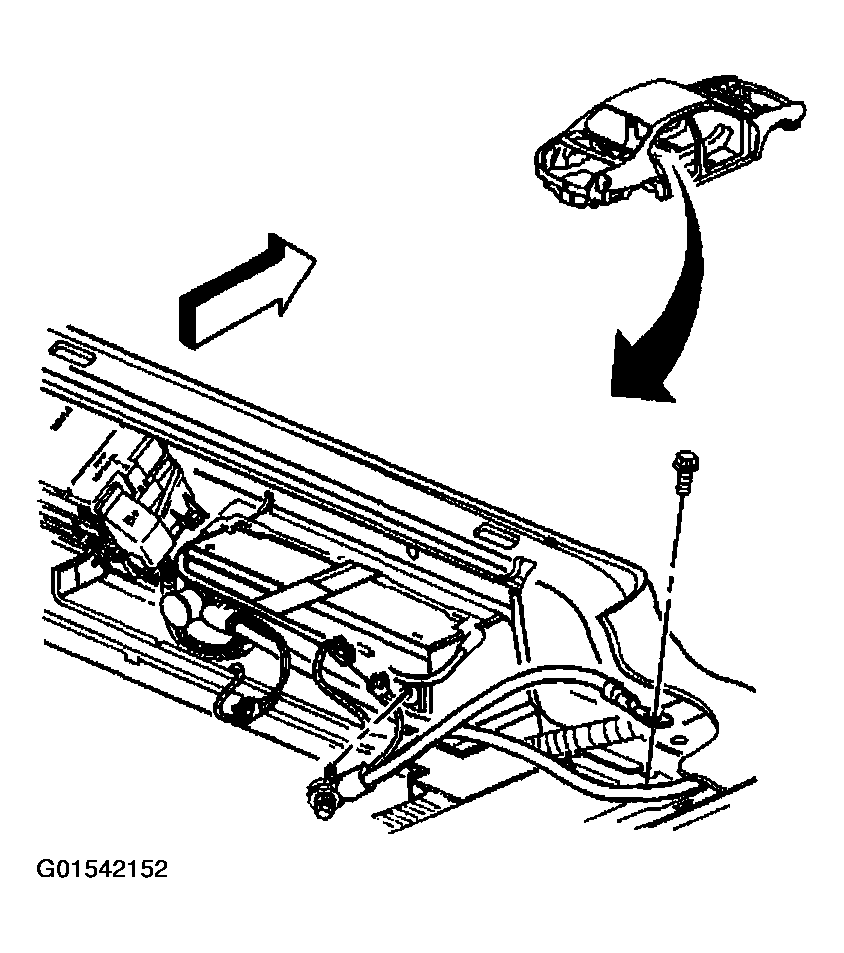

    Fig 1: Installing Battery Negative Cable To Vehicle
    G01542152Courtesy of GENERAL MOTORS CORP.
