Home >> Buick >> 2003 >> LeSabre Custom, 4T65E/MN3 >> Repair and Diagnosis >> Electrical >> Body Electrical >> Battery >> Repair Instructions >> Battery Negative Cable Disconnect/Connect Procedure >> Installation Procedure

Installation Procedure

NOTE: Refer to FASTENER NOTICE .
  1. Connect the negative battery cable to the battery.

    Tighten

    Tighten the negative battery cable bolt to 15 N.m (11 lb ft).

  2. Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR .

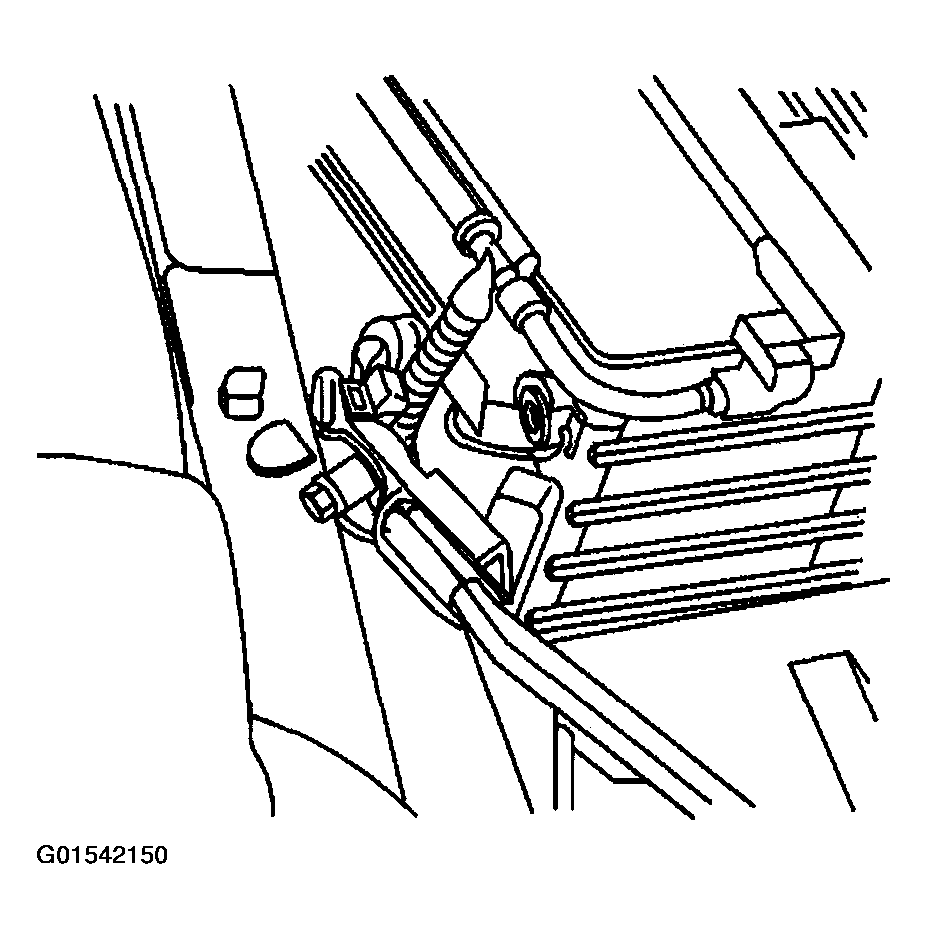

    Fig 1: Connecting Negative Battery Cable To Battery
    G01542150Courtesy of GENERAL MOTORS CORP.
